Scantool Diagnostics

Automatic Transaxle
U0001 High Speed CAN Communication Bus off (C-CAN) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Engine "ON".
3. Monitor the "CAN Communication Service Data (Engine RPM, Vehicle Speed Sensor, Throttle P. Sensor)" parameters on the GDS.








Fig 1) Channel A : OPU Status, Channel B : HALL Signal (Normal situation)
Fig 2) Channel A : OPU Status, Channel B : HALL Signal (CAN Line Error)

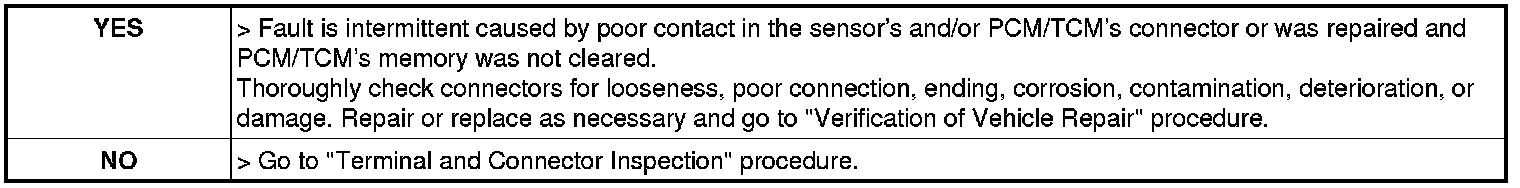

4. Is measured current data within specific?
