Scantool Diagnostics

HEV Motor System
U0001 High Speed CAN Communication Bus off (C-CAN) - Scantool Diagnostics

Scantool Diagnostics

Check DTC
1. Connect GDS and check DTCs.
2. Check for CAN communication DTCs between MCU and each module.
3. If there any module related DTCs, check those DTC(s) first.
4. Erase the DTC after inspection and repair has done.

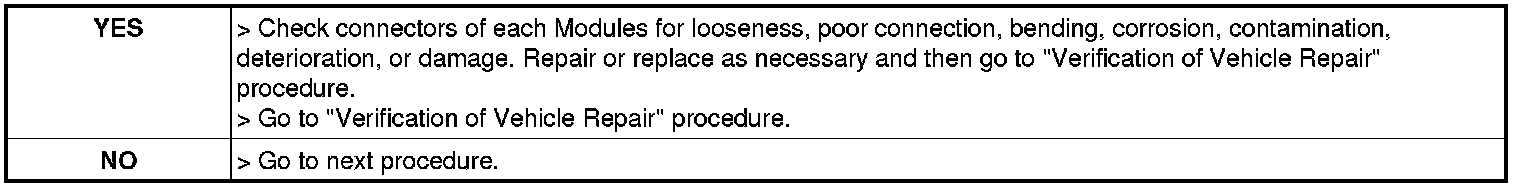

5. Is the DTC erased ?
