Active Air Flap
U0001 High Speed CAN Communication Bus off (C-CAN) - General Information

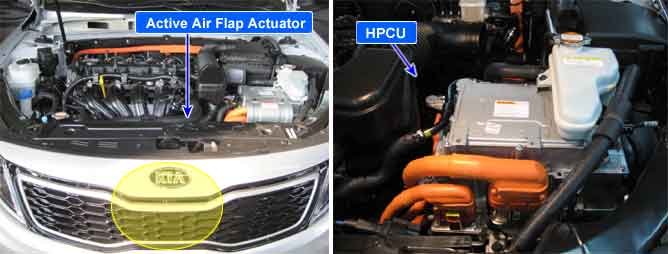

Component Location





Gerneral Description

CAN communication consists of High and Low line which has 120Ohms registor respectively. Through CAN communication, each module possibly sends their information to others.
A.A.F(=Active Air Flap) Actuator(Module) controls Engine and Motor properly by interchaging their information through CAN.

DTC Description

AAF sets DTC U0001 when AAF can not receive or give any information through AAF Actuator.

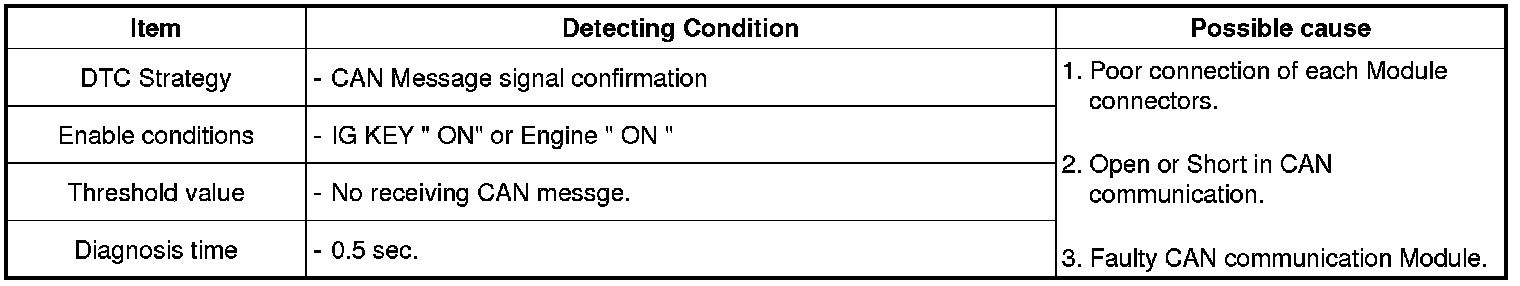

DTC Detecting Condition





Diagnostic Diagram










CAN Signal : high & low
