General Information

Automatic Transaxle
P2709 Shift Control Solenoid Valve \'F\' Electrical (SS-B) - General Information

Component Location





General Description

The Shift solenoid valve is ON/OFF type and changed a way of oil direction. PCM/TCM control solenoid valve to set gear speed position.

DTC Description

This DTC is set when PCM/TCM detects open or short circuit in valve harness.

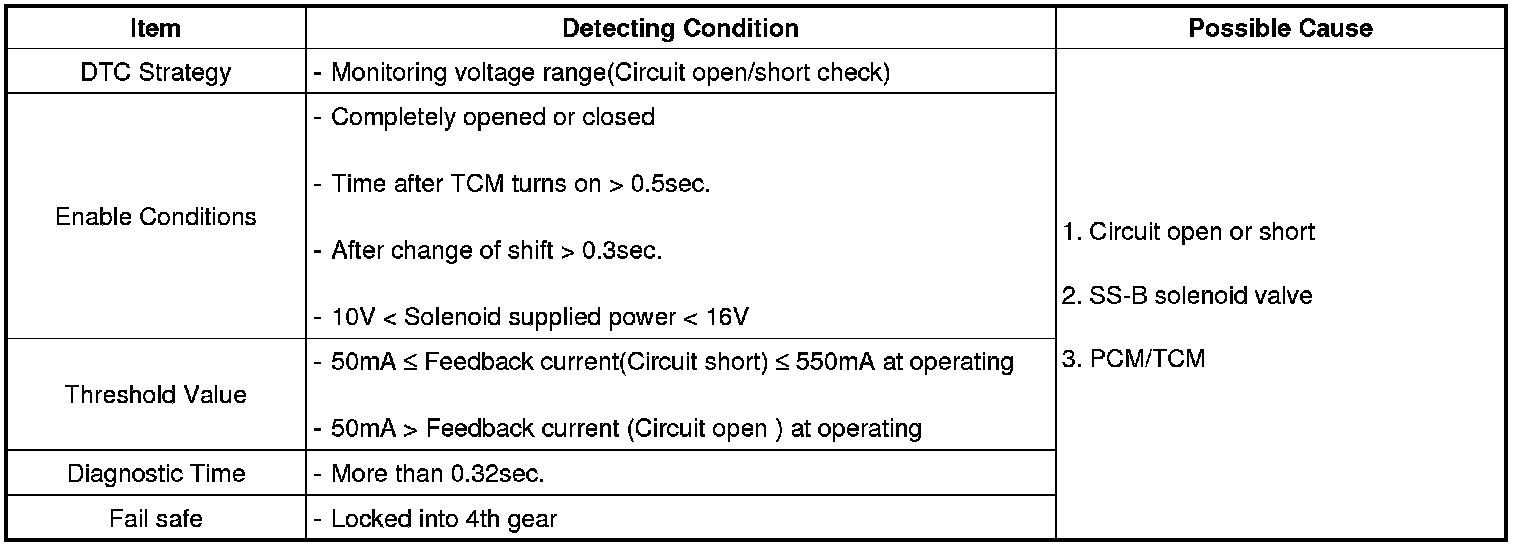

DTC Detecting Condition





Specification

- Working voltage: under 7.5V (Supplied perssure 5.0kgf/cm2, Oil temperature 85°C)(185°F)
- Release voltage: under 5.5V (Supplied perssure 5.0kgf/cm2, Oil temperature 85°C)(185°F)
- Release current: under 5.5V (Supplied perssure 0.51kgf/cm2, Oil temperature 85°C)(185°F)
- Inetrnal resistance : 10 - 11 Ohms( 20°C)(68°F)
Operating mode table at each step

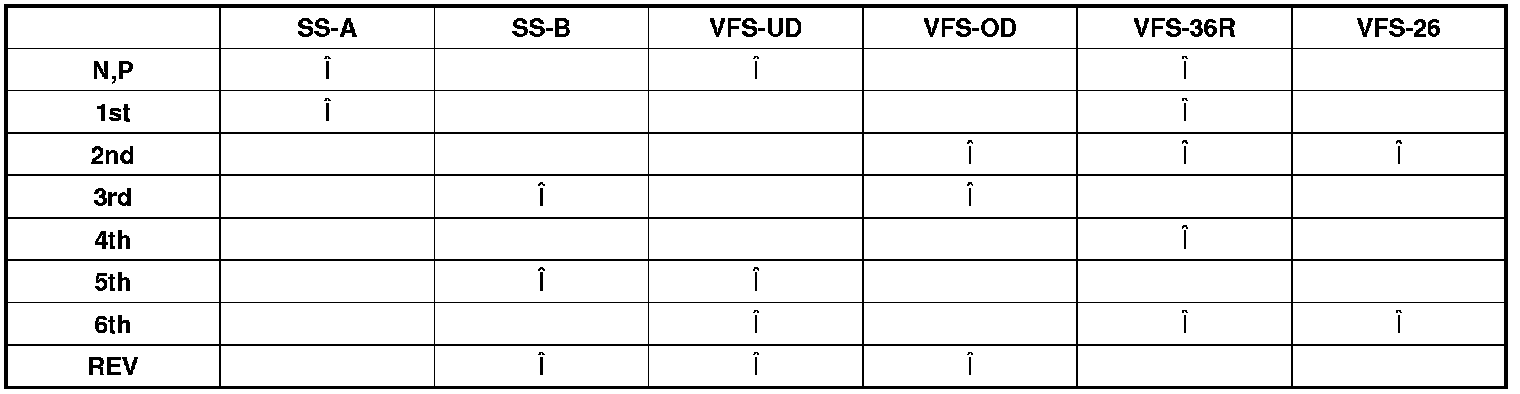

SOLENOID VALVE

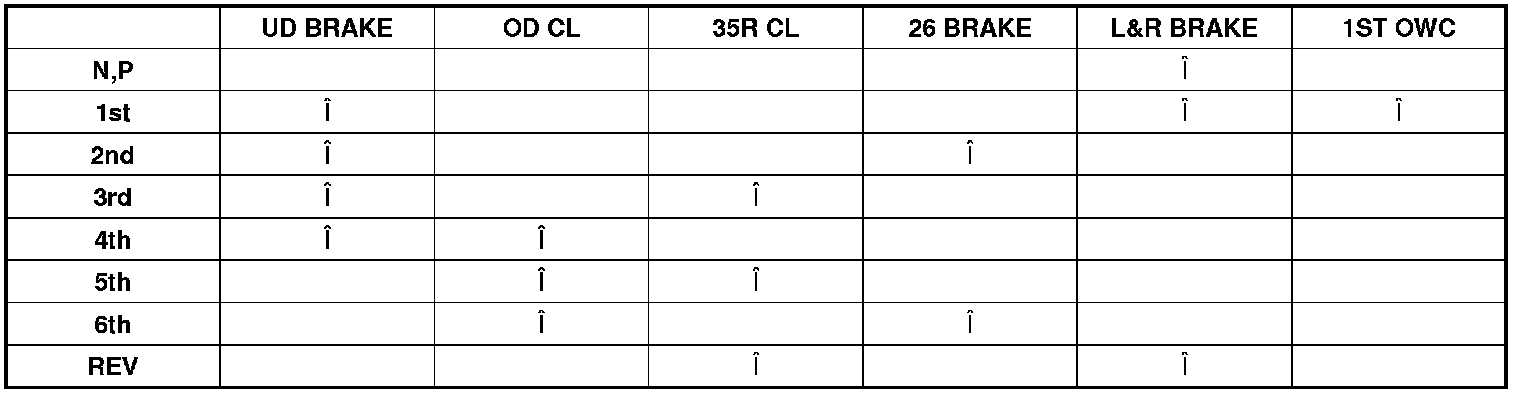

ELEMENT






Diagnostic Circuit Diagram
