General Information

Engine Control
P2026 Evaporative Emissions Fuel Vapor Temperature Sensor Circuit Low Voltage - General Information

Component Location





General Description

The Evaporative system monitoring is made by using Natural Vacuum Leak Detection (NVLD).
The leak detection is made by using two components.
The "NVLD Sensor module" which incorporates the NVLD pressure switch and temperature sensor.
And the canister purge valve which is used as actuator to create vacuum in the tank when the engine is running.

DTC Description

P2026 is set when the communication line between NVLD and PCM is open or shorts to ground.

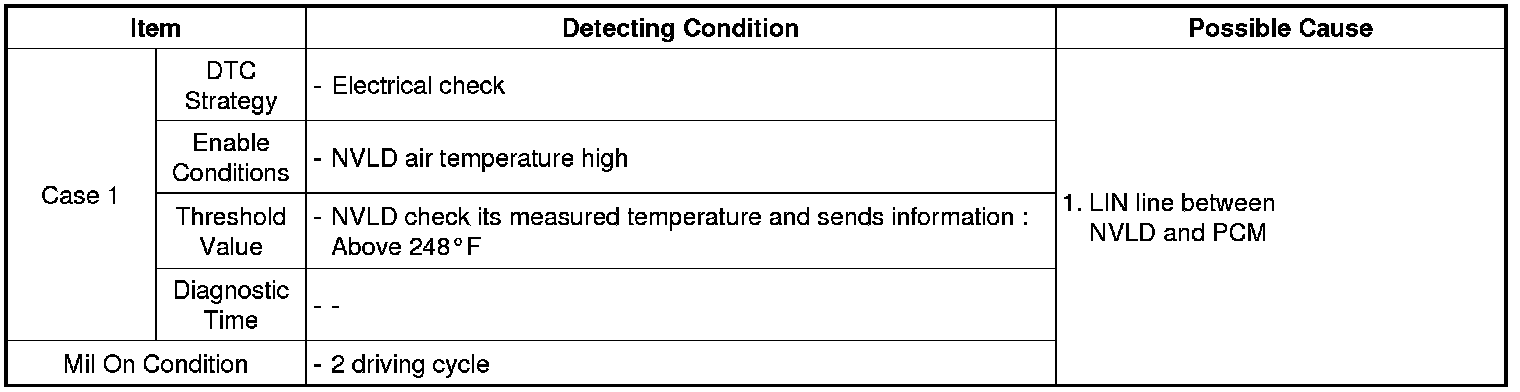

DTC Detecting Condition





Diagnostic Circuit Diagram
