W/Harness Inspection

HEV Motor System
P1C6A Generator Phase Cable Circuit Open - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminal condition. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

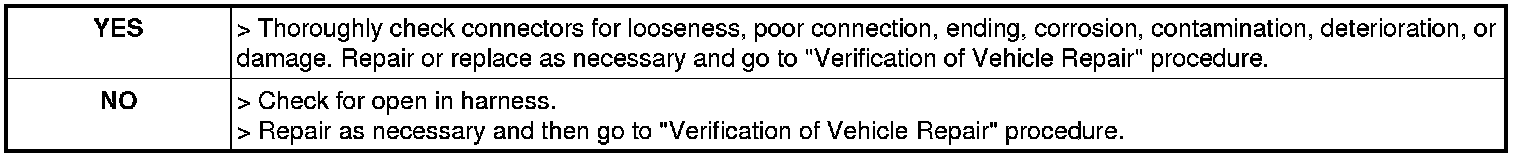

3. Has a problem been found?





Check for open in harness
1. Ignition OFF
2. Disconnect safety plug from the main battery (Wait for 5 minutes after OFF).
3. Disconnect Generator(HSG) Cable and MCU main harness connector.
4. Measure resistance between Cable terminal of Generator(HSG) Cable harness connector and Cable terminal of MCU harness connector.

Specification :Below 1Ohms




5. Is the measured resistance within specifications?
