General Information

HEV Motor System
P1C6A Generator Phase Cable Circuit Open - General Information

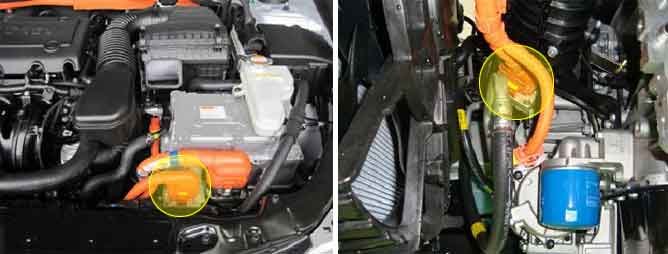

Component Location





General Description

The Motor Control Unit (MCU) supplies AC voltage to both the Drive Motor and the Hybrid Starter Generator (HSG). The Drive Motor provides output torque to the drivetrain and the HSG starts the gasoline engine.

NOTE:
** NOTE: When at EV Ready status the HSG is operational and may begin turning at any time. Stay clear of the drive belt during this time.

DTC Description

The MCU sets P1C6A when there is an open in HSG cable connector.

DTC Detecting Condition





Diagnostic Circuit Diagram
