W/Harness Inspection

HEV Battery System
P1B96 High Voltage Battery Voltage Sensor Circuit Fault - Inspection/Repair:_:W/Harness Inspection

Terminal & Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found ?






Hybrid Battery 72 cell voltage inspection

Hybrid Battery 72 cell voltage inspection
1. Ignition ON (SSB LED "BLUE"), in "Current Data" record any battery cell numbers under 1.0V among 72 cells.
2. Disconnect Safety Plug, then check terminal voltage drop down is less than 30V.
3. Check for looseness between battery module assembly and BMS ECU, poor connection, bent, corrosion, contamination, deformation and damage. If necessary, repair or replace as necessary then, go to "Verification of Vehicle Repair" procedure.
4. Confirm that max difference among cell voltages going to the BMS ECU is really under 0.5 voltage by measuring the rear side of BMS connector.
- If measured cell voltage is more than 0.5V :
Check for open circuit in the each cell wire going to the BMS ECU from High Voltage battery.
If it is open, repair or replace as necessary, then, go to "Verification of Vehicle Repair" Procedure.
- Measured cell voltage is continuously more than 1V,after Inspection for open in harness and repair, replace battery pack assembly (Actually excessive cell voltage deviation status)
- Measured cell voltage is less than 2V
This is a fault of BMS ECM itself or a history DTC. Go to "Verification of Vehicle Repair" procedure.

Specification :Battery Cell Voltage ragne with No DTC : 1.5 - 4.8V
The maximum difference voltage among the Battery Cell : under 0.2V
Hybrid Battery 50 - 60% (State of Charge) : Approx. 3.75V
** Notice : It is very difficult to judge whether it is good or not only with battery cell voltage in the specific charging status. Because voltage will be changable in operating temperature according to SOC, voltage, temperature and current.

WARNING:
** Warning & Notice
Hybrid Battery system uses around 270V voltage.
It may cause death or damage due to electrical shock, if you do not follow below Instructions.
▪ Follows instructions of workshop manual.
▪ Wear and use insulated glooves and tools.
▪ IG "OFF", Disconnect ground cable of auxiliary battery and "OFF" the safety connector of the high voltage battery.
▪ Check high voltage terminal on Power Relay Assembly is lower than 30V.
▪ Be careful that it should not be short between terminals when measuring battery cell voltage. You may be injured due to spark, parts damage or electrical shock.
▪ Metalic material cause high voltage short that may cause damage of life or vehicle. Therefore, get rid of all the metalic material before working. (Metalic Material : Watch, Ring, any metalic products etc.)
▪ After disconnect W/H goes to BMS ECU from High voltage battery, be careful not to happen short between exposed terminal and terminal on high voltage connector.




















5. Are measured value within specification ?





Inspection with Analysis of Current Data
1. Ignition ON (SSB LED "BLUE"), check "Current Data".
2. Check "Hybrid Battery pack voltage" and "battery cell voltage 1 - 72" in current data while Ignition ON (SSB LED "BLUE") or Ignition ON/Hybrid Ready (Cluster Indicator "READY" On) mode with acceleration.

Specification :1 battery cell voltage (V) : 3.75V( Discharge : 2.75V, Full charge : 4.3V)
Battery Pack voltage (V) : 270V(Discharge : 198V, Full Charge : 309V)
























FIg.1) Reference value - SOC 46%, After engine start and acceleration, hybrdi battery volatage detects 271.5V
FIg.2) Reference value - SOC 46%, After engine start and acceleration, hybrdi battery cell volatage detects 3.76 - 3.80V
FIg.3) Reference value - SOC 46%, After engine start and acceleration, hybrdi battery cell(1 - 17) volatage detects 3.76 - 3.78V
FIg.4) reference value - SOC 46%, After engine start and acceleration, hybrdi battery cell(18 - 38) volatage detects 3.78 - 3.80V
FIg.5) Hybrid battery SOC 46% : Battery cell voltage(39 - 59 cell) is detected around 3.78 - 3.8V after engine ON with accelleration.
FIg.6) Hybrid battery SOC 46% : Battery cell voltage(59 - 72 cell) is detected around 3.76V after Engine On with accelleration.

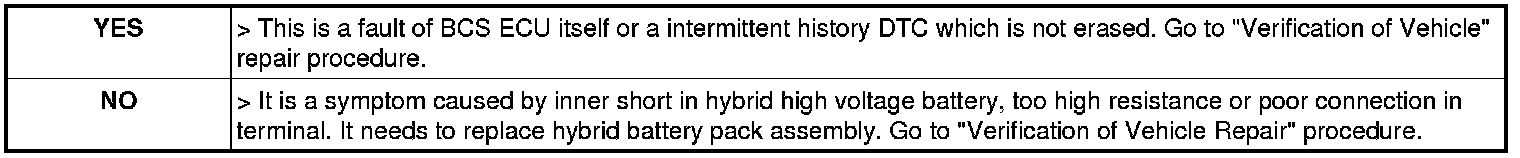

3. Is the measured value within specification ?
