Scantool Diagnostics

HEV Battery System
P1B03 Auxiliary Battery Temperature Sensor Circuit - Scantool Diagnostics

Monitor Scantool Data

1. Ignition ON (SSB LED "BLUE"), select "DTC Diagnostics" mode.
2. Check DTCs with GDS in DTC self-diagnostics.
3. Erase DTC.

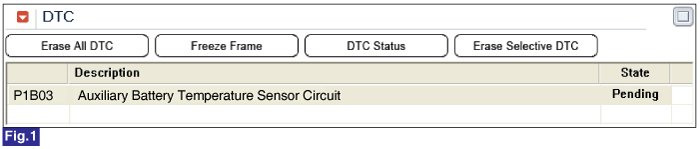

Fig.1) DTC detection after Diagnostics

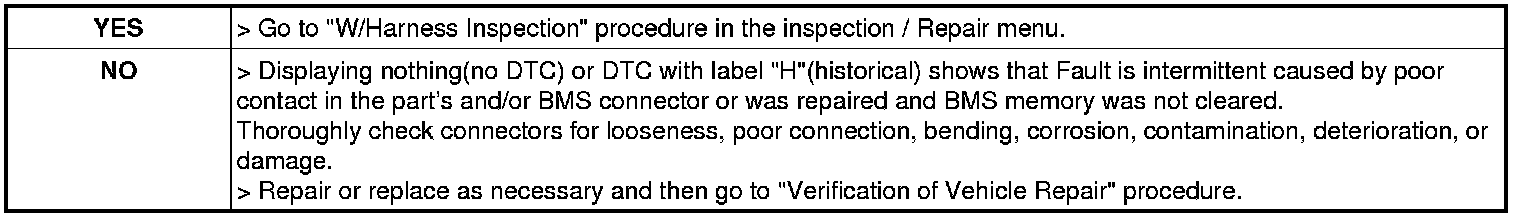

4. Did the DTC set again ?
