Scantool Diagnostics

Low DC/DC Converter
P1A89 DC/DC Converter Current Sensor Fault - Scantool Diagnostics

Monitor DTC Status

1. Ignition ON (SSB LED "BLUE") & Vehicle "STOP".
2. Connect GDS and select "DTC Analysis" mode.

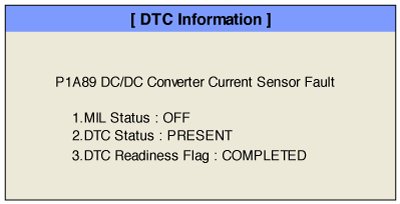

3. Click "DTC Status" on the menu bar to view DTC information.
4. Confirm that the "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in Freeze Frame Data or Enable Conditions.
5. Read the "DTC Status" parameter.

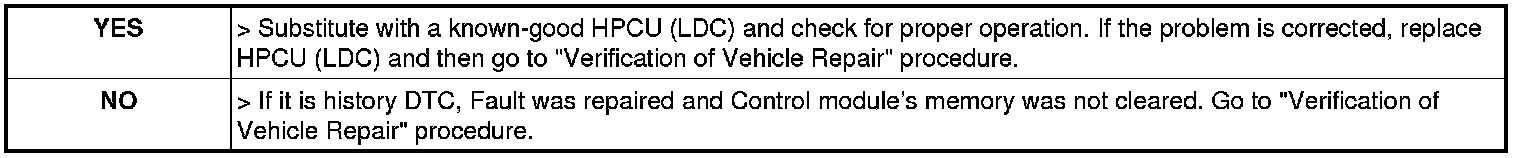

6. Is parameter displayed "Present fault"?
