Component Inspection

Automatic Transaxle
P1784 EOP 3-Phase Wiring line open - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF".
2. Connect scantool and check DTC.
3. Erase the DTC with scantool.
4. After turning IG OFF to IG ON twice or three times, check DTC again.

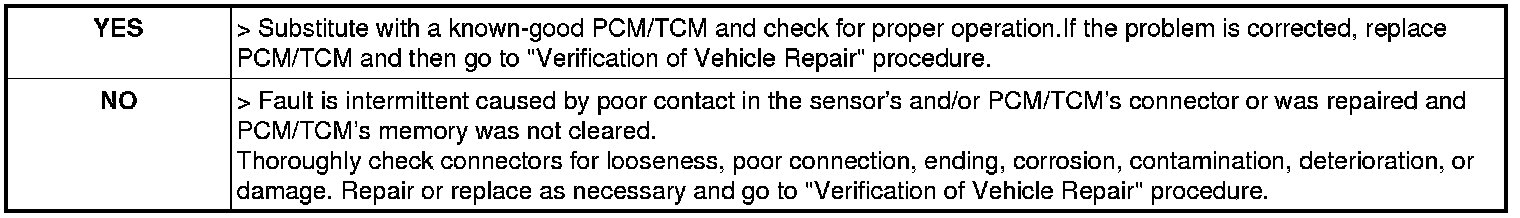

5. Does the scantool show same DTC again?
