P1778 Engine Clutch VFS Fail - General Information

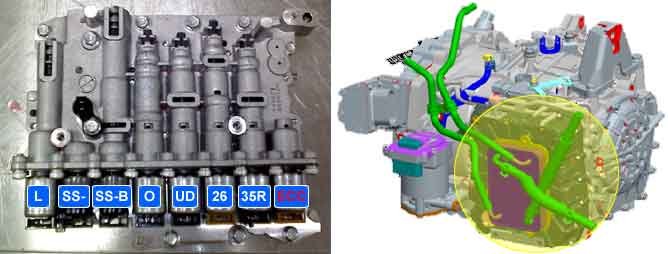

Component Location





General Description

The HEV uses the hydraulic pressure that in addition to mechanical main hydraulic pump, EOP(Electric oil pump) controlled by OPU(oil pump unit) to take command from by PCM/TCM generates to operate engine clutch and U/D brake.
While low speed driving or engine auto stop regardless of driving mode (EV mode or HEV), when hydraulic pressure become low because of mechanical main hydraulic pump rotation in low speed or stop, OPU supply pressure on U/D brake by operating EOP in order to protect Friction Element.
When shifting the driving mode from EV mode to HEV mode, EOP supplies hydraulic pressure to the engine clutch in order to use engine power when the driving mode shift is completed (Engine clutch : wet type multiple disk clutch that connect or disconnect the engine power between engine input shaft and transaxle input shaft)

DTC Description

This DTC is set when PCM/TCM detects open or short circuit in harness.

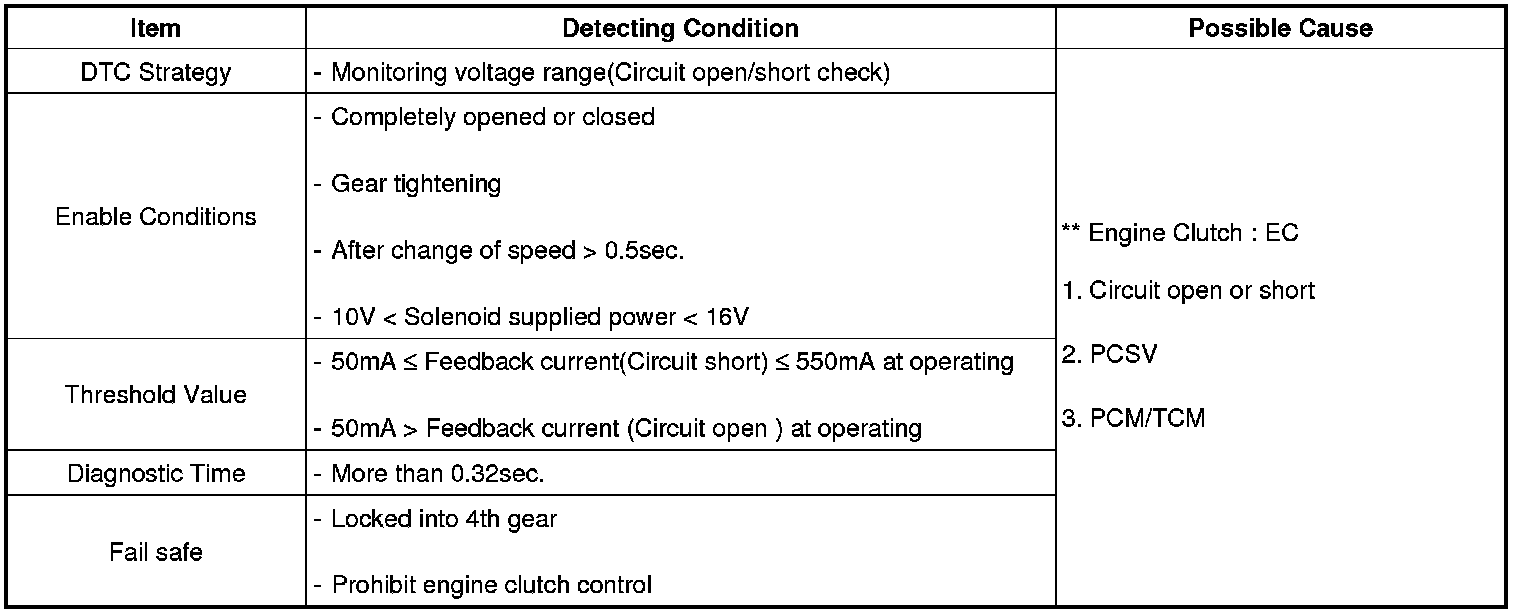

DTC Detecting Condition





Specification

- Working temperature : -40°C~150°C( -6.2 - 302°F)
- Internal resistance : 5.1 ± 0.3 Ohms ( 25°C(77°F) normal temperature )

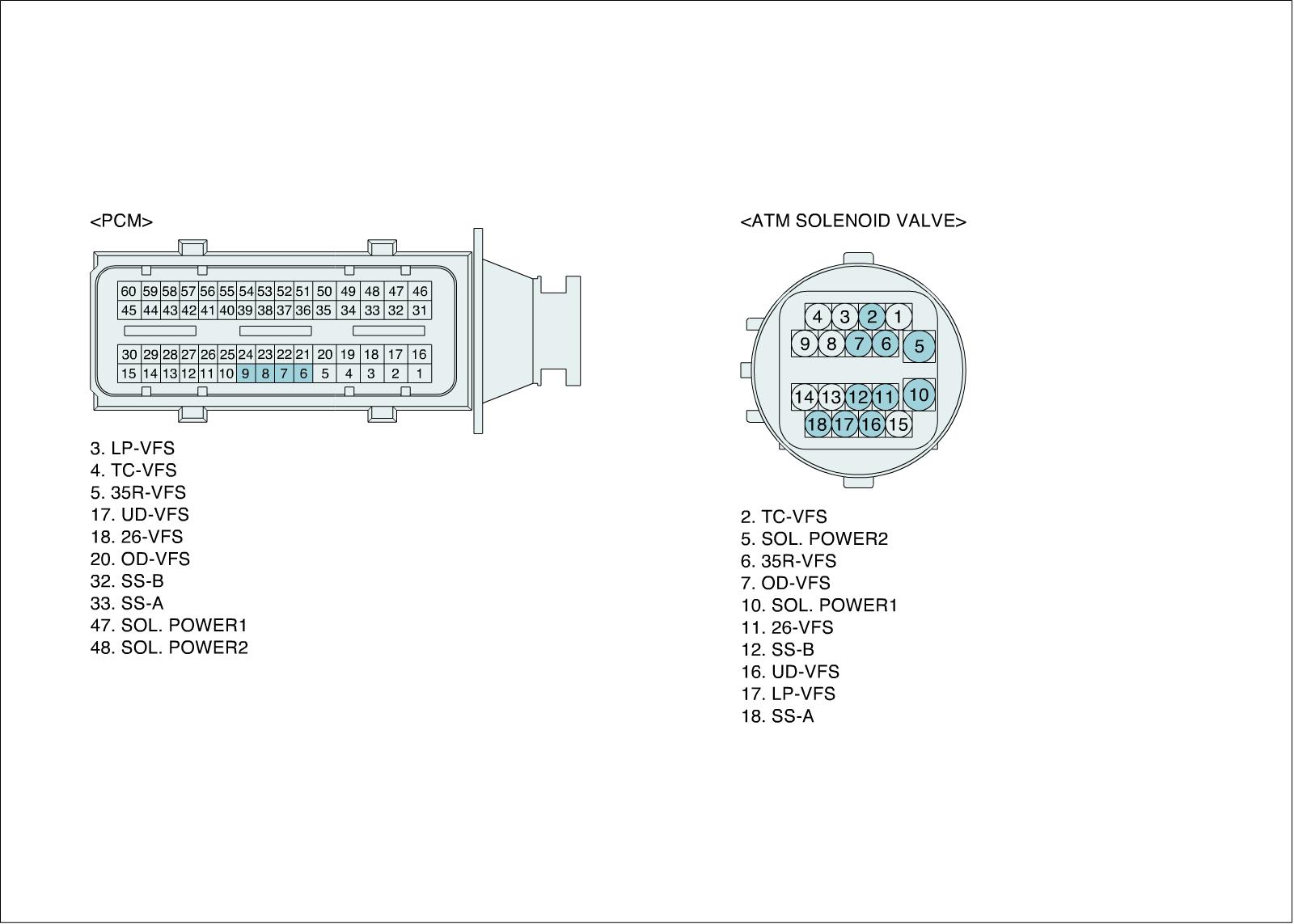

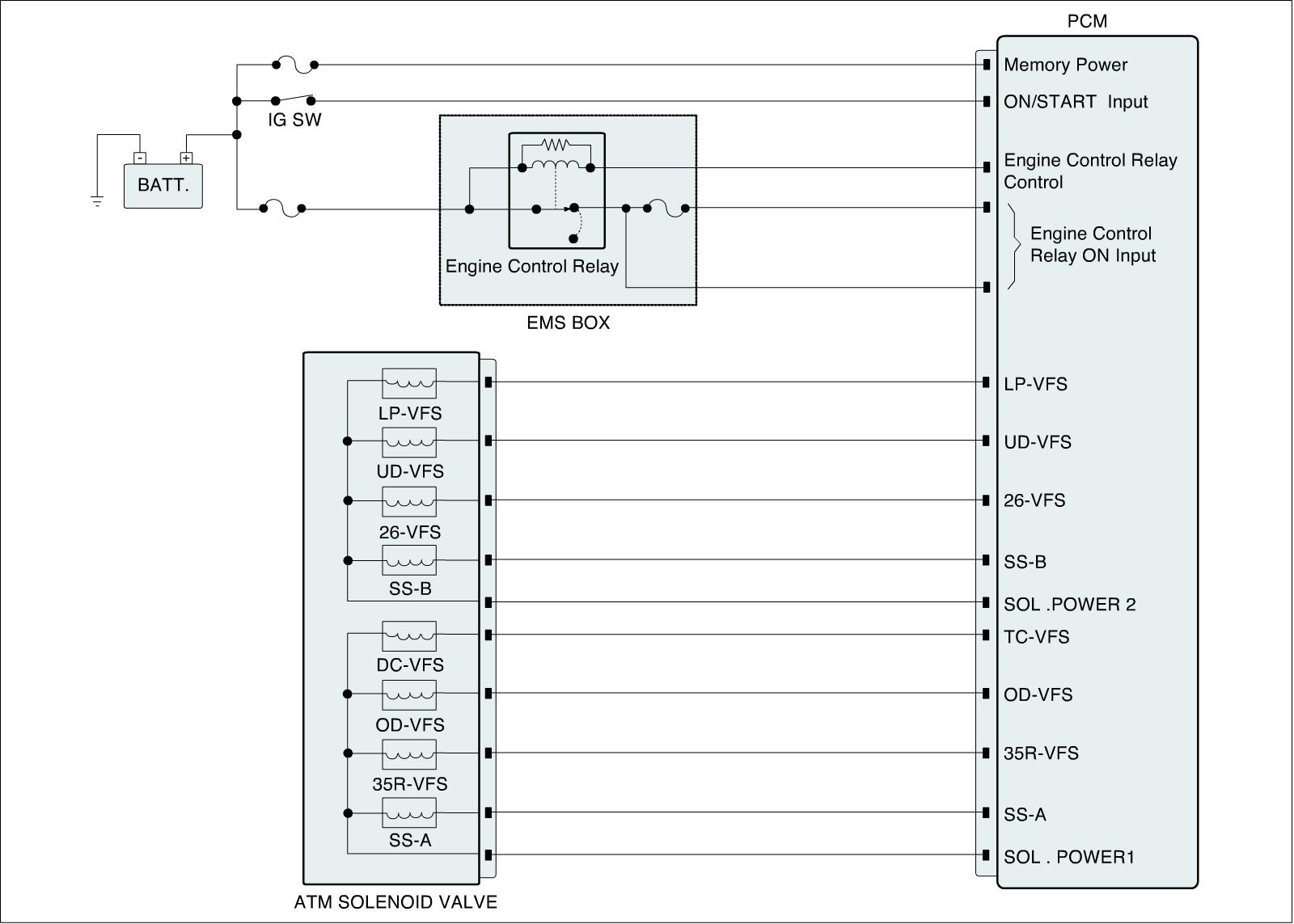

Diagnostic Circuit Diagram










Signal Waveform & Data

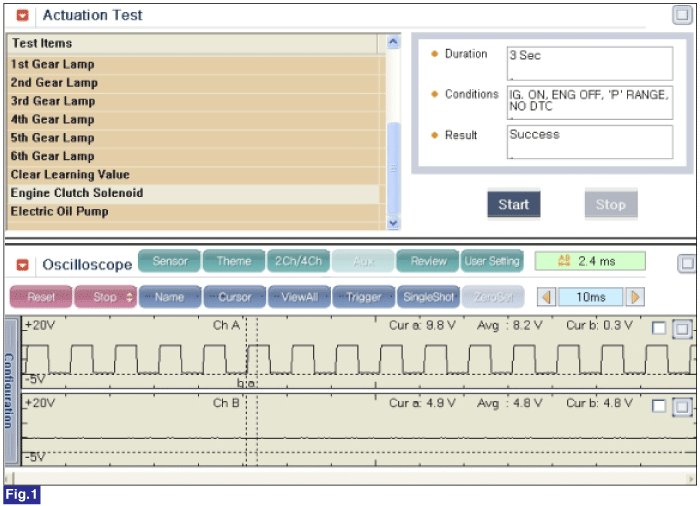

Ex) Operation
Fign1) Channel A : OPU Status, Channel B : HALL Signal (When is driven compulsory)
