Component Inspection

Automatic Transaxle
P1774 Speed Command PWM Line - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF".
2. Connect scantool and check DTC.
3. Erase the DTC with scantool.
4. After turning IG OFF to IG ON twice or three times, check DTC again.

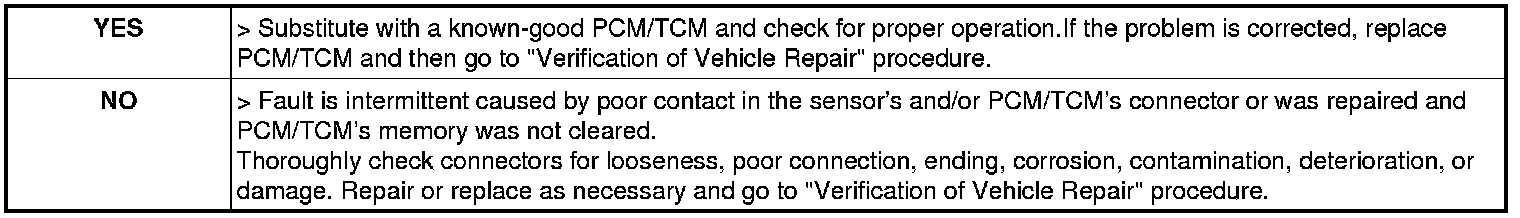

5. Does the scantool show same DTC again?
