General Information

Active Air Flap
P1236 Active Air Flap F/B Voltage Low - General Information

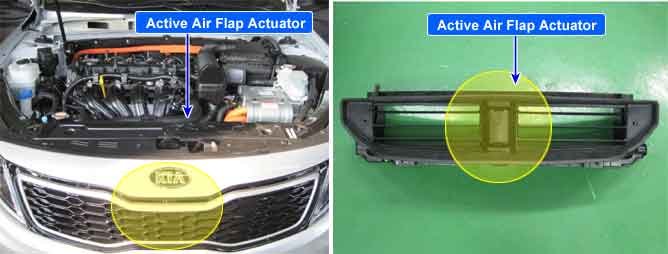

Component Location





Gerneral Description

A.A.F(=Active Air Flap) system is equipped with a flip can be opened between radiator grille and radiator.
During High speed driving, it will enhance the driving stability by closing the flap to reduce the air resistance.
Inside the engine room, the temp

DTC Description

The A.A.F(=Active Air Flap) Actuator (Control Module) sets P1236 and turns warning lamp ON if the detected driving voltage is lower than 0.1V.

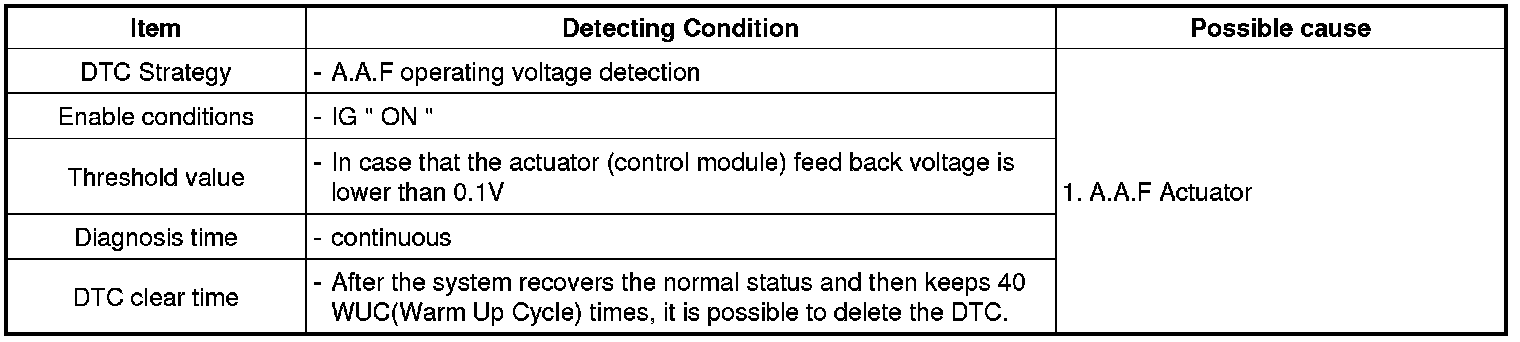

DTC Detecting Condition





Diagnostic Diagram
