Component Inspection

Active Air Flap
P1236 Active Air Flap F/B Voltage Low - Inspection/Repair:_:Component Inspection

Component Inspection

Actuator Test Check
1. Connect scantool to Data Link Connector(DLC)
2. IG key "ON"
3. Perform Actuator Test with scantool.

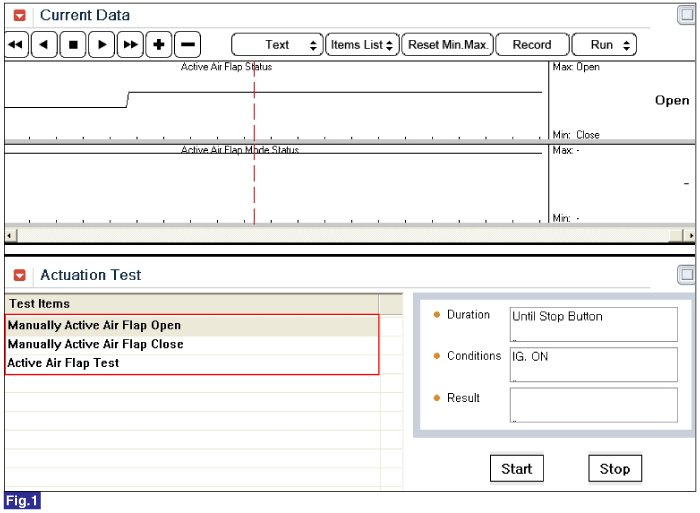

Fig.1) Actuation test

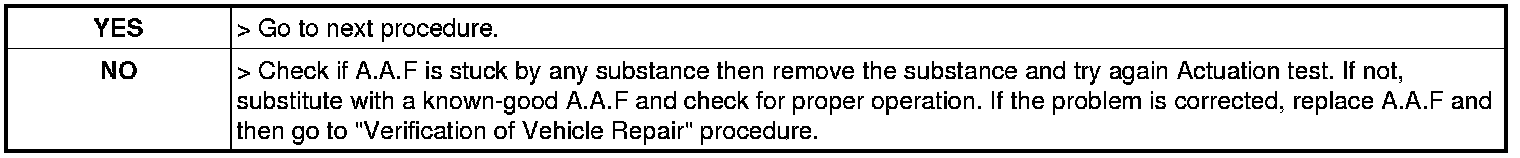

4. Is the operation in normal ?
