P0C3A DC/DC Converter Temperature Sensor \'A\' Low - Scantool Diagnostics

Monitor DTC Status

1. Ignition ON (SSB LED "BLUE") & Vehicle "STOP".
2. Connect GDS and select "DTC Analysis" mode.

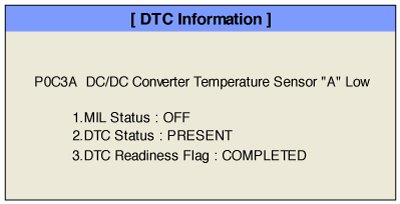

3. Click "DTC Status" on the menu bar to view DTC information.
4. Confirm that the "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in Freeze Frame Data or Enable Conditions.
5. Read the "DTC Status" parameter.

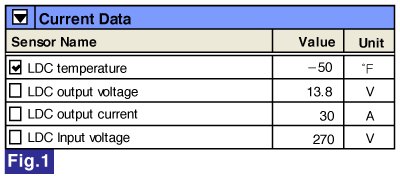

Fig.1) Parameter of "LDC temperature" will be fixed at -50°F, if there is any fault in LDC Temperature.

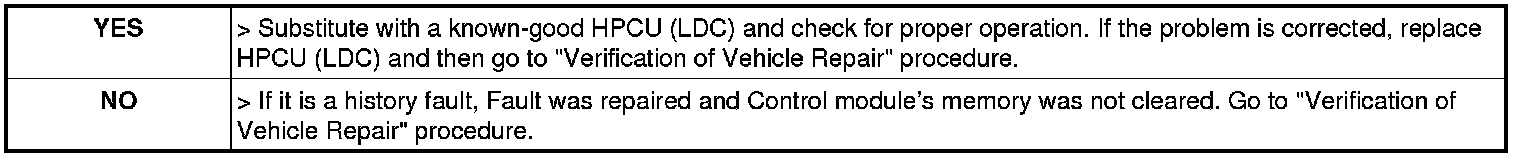

6. Is parameter displayed "Present fault" & temperature indicated -50°F ?
