P0AEF Drive Motor Inverter Temperature Sensor \'A\' Circuit Low - General Information

Component Location





General Description

The Motor Control Unit (MCU) supplies AC voltage to both the Drive Motor and the Hybrid Starter Generator (HSG). The Drive Motor provides output torque to the drivetrain and the HSG starts the gasoline engine. There is a Drive Motor Inverter Temperature Sensor located in the MCU.

DTC Description

The MCU sets P0AEF if the Drive Motor Inverter Temperature Sensor circuit is shorted to ground.

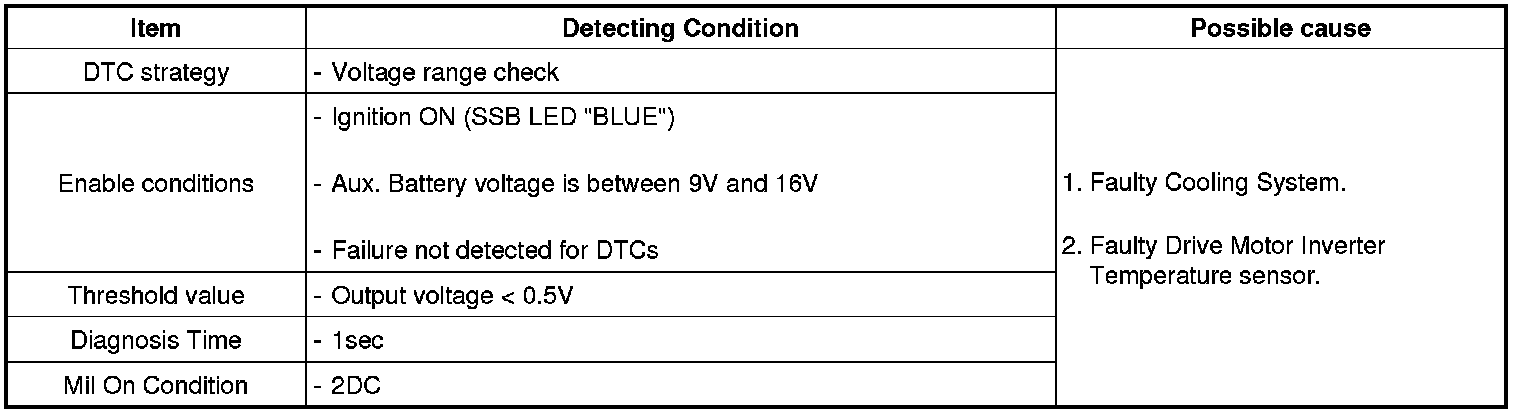

DTC Detecting Condition





Diagnostic Circuit Diagram
