P0A7F Hybrid Battery Pack Deterioration - General Information

Component Inspection





General Description

** What is the High Voltage Battery System ?

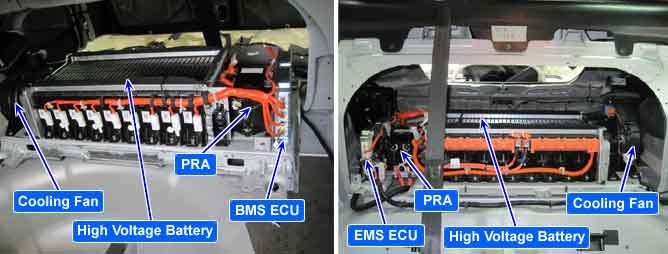

The High Voltage Battery System consists of the Battery Management System Control Unit (BMS-ECU), Power Relay Assembly (PRA) and a Cooling Blower.
Each function is listed below :
- High Voltage Battery: Supplies electrical energy for acceleration and receives/stores electrical energy during deceleration.
- BMS ECU: Controls the High Voltage Battery by monitoring the voltage, current and temperature.
- PRA(Power relay assembly)consists of relays which link and cut high voltage, and finally, current sensor which monitors battery current. Those are an assembly in PRA.
- A safety plug : It can cut high voltage flowing as mechanically in order to protect technicians. And, there is a safety fuse in the safety plug that protect over current.
- Cooling Blower: Maintains proper High Voltage Battery temperature.
** The battery cell function and roles :
The High Voltage battery cell is the smallest unit of the High Voltage Battery pack.
The voltage of each cell is 3.75V. The battery pack will attain 270V by connecting all 72 cells in a series.

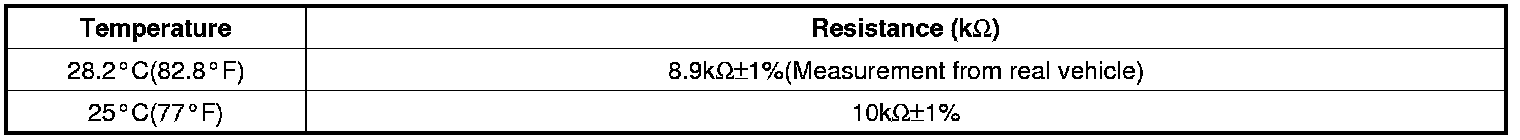

The BMS ECU monitors all of the 72 high-voltage cells, 5 battery temperature sensors, an ambient temperature sensor, a current sensor which checks the main battery and an auxiliary battery temperature sensor.
** The High-voltage battery specification is shown below :
Operating Voltage : for a battery pack : 200 - 310V (for a battery cell: 2.75 - 4.3)
Operating temperature : -30°C(-22°F)~55°C(131°F)
Storage temperature : -40°C(-40°F)~65°C(149°F)
Operating Current : During charge (-)200A~ During discharge (+)200A.
Field action when High Voltage Battery discharges






DTC Description

The BMS ECU checks out the each cell resistance of 72 cells battery at all times. when one of the 72 cells is detected above 13mOhms then BMS ECU sets P0A7F.

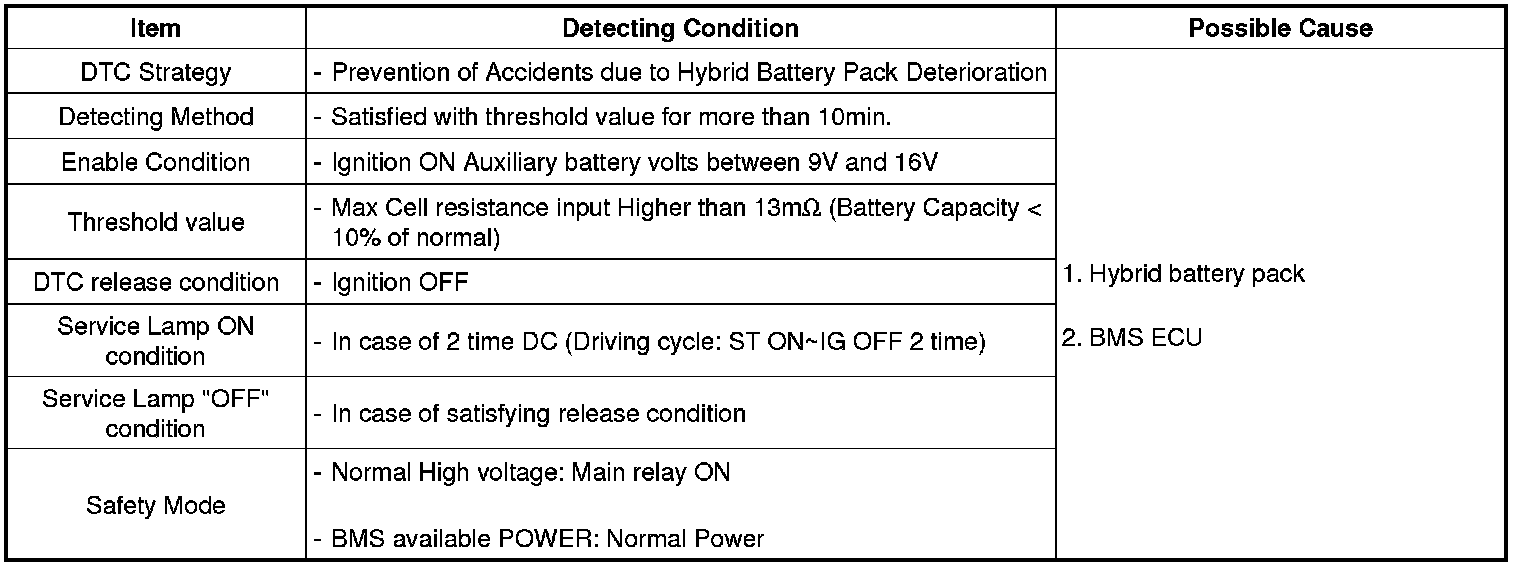

DTC Detecting Condition





Specification

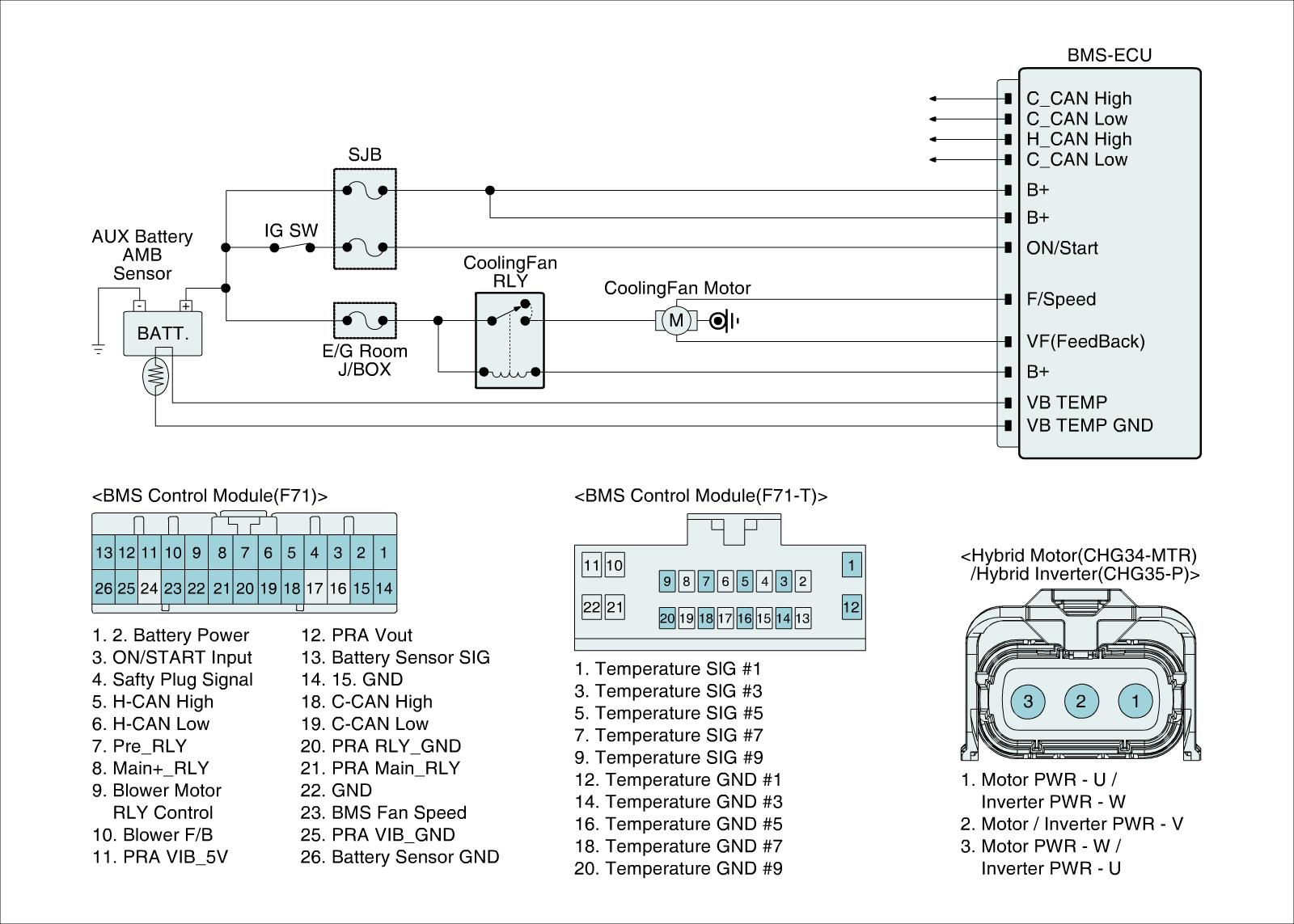

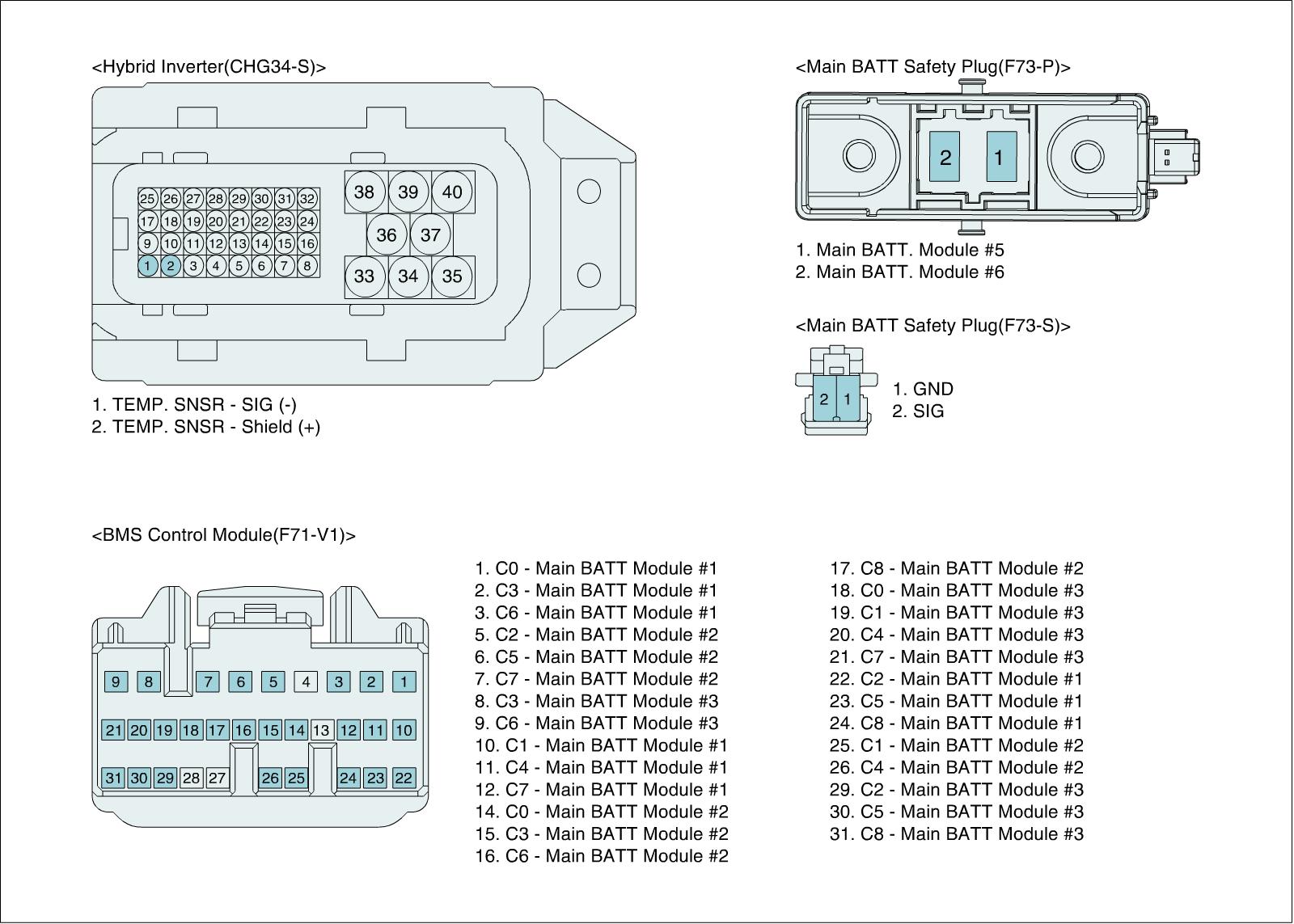

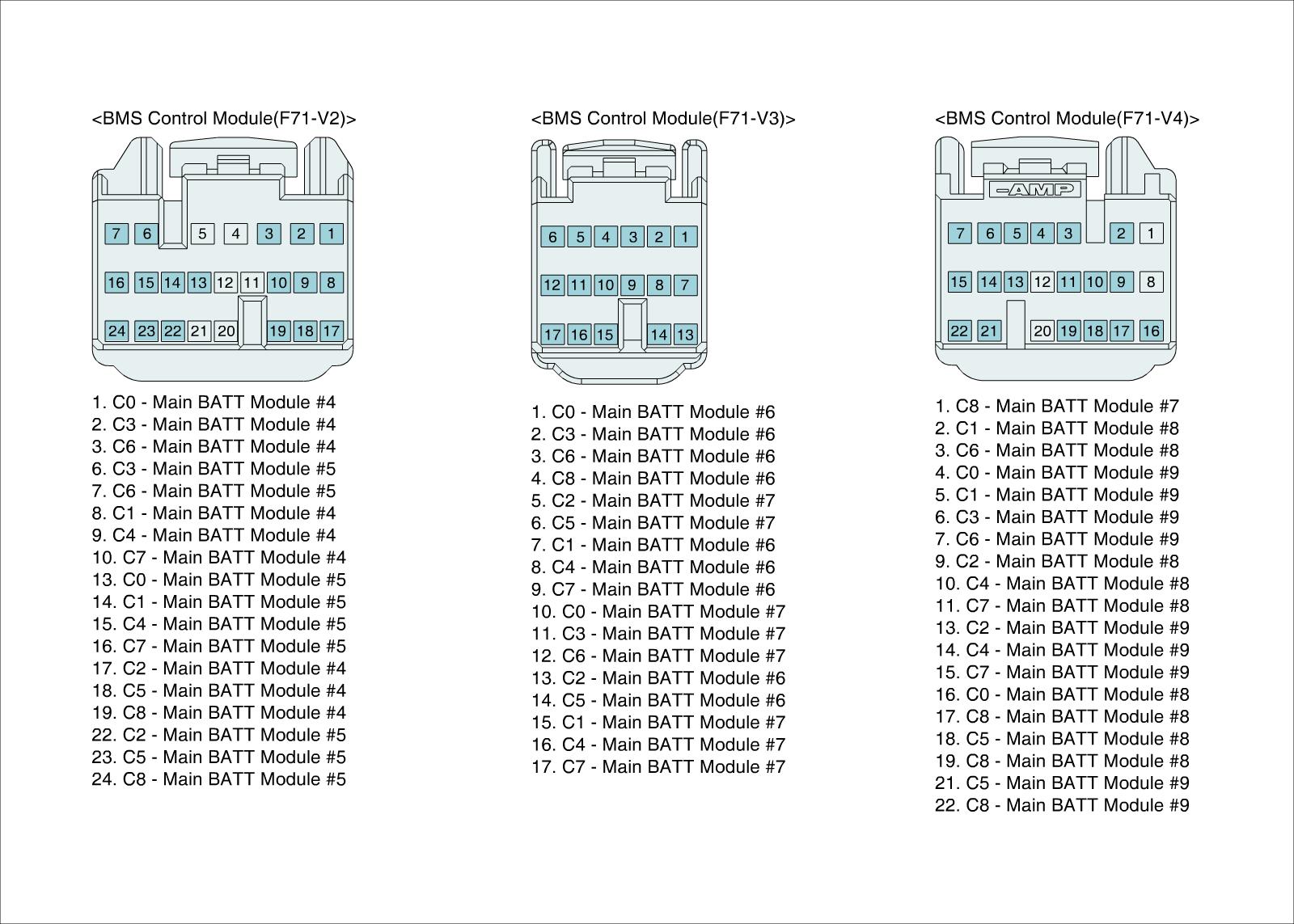

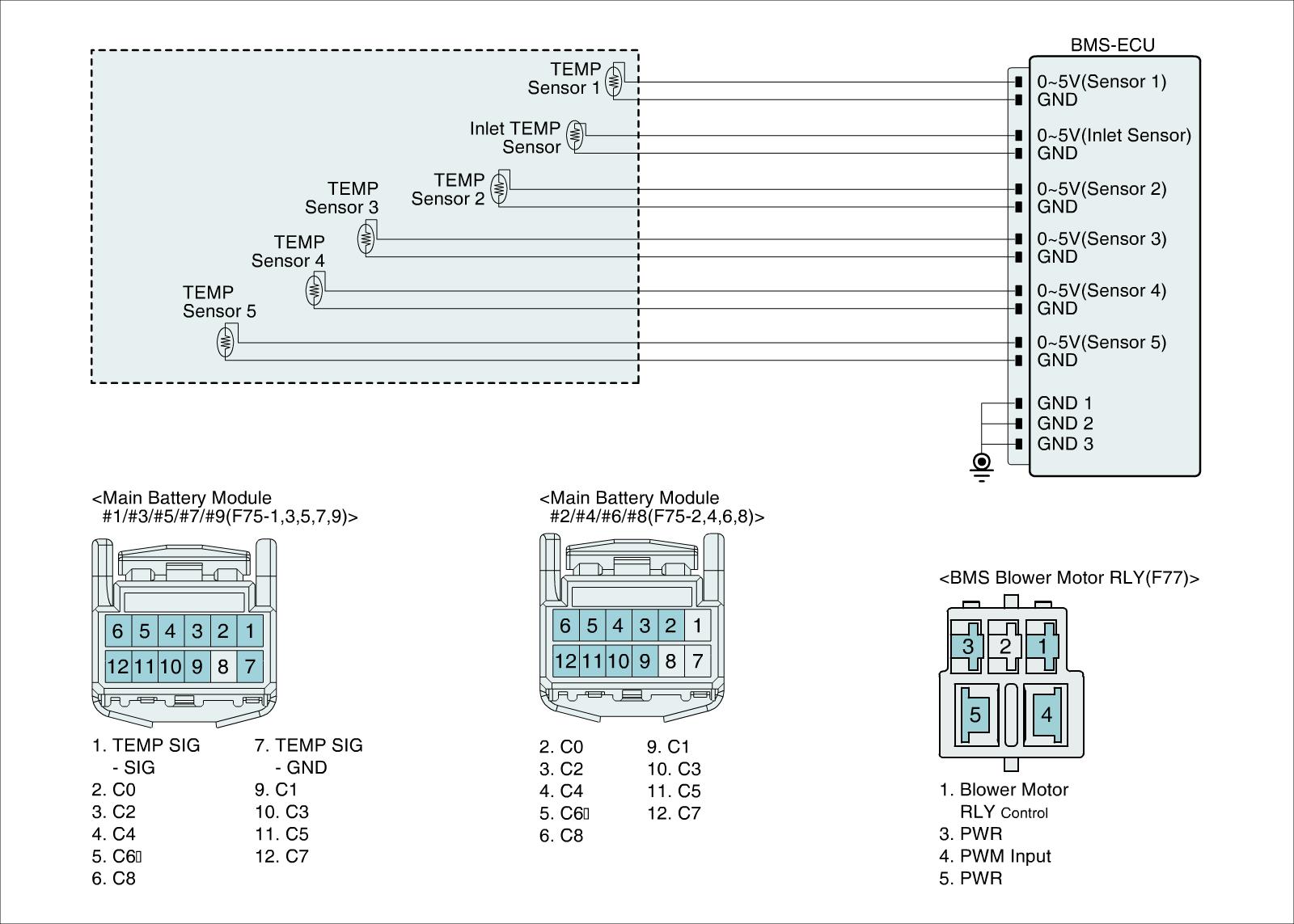

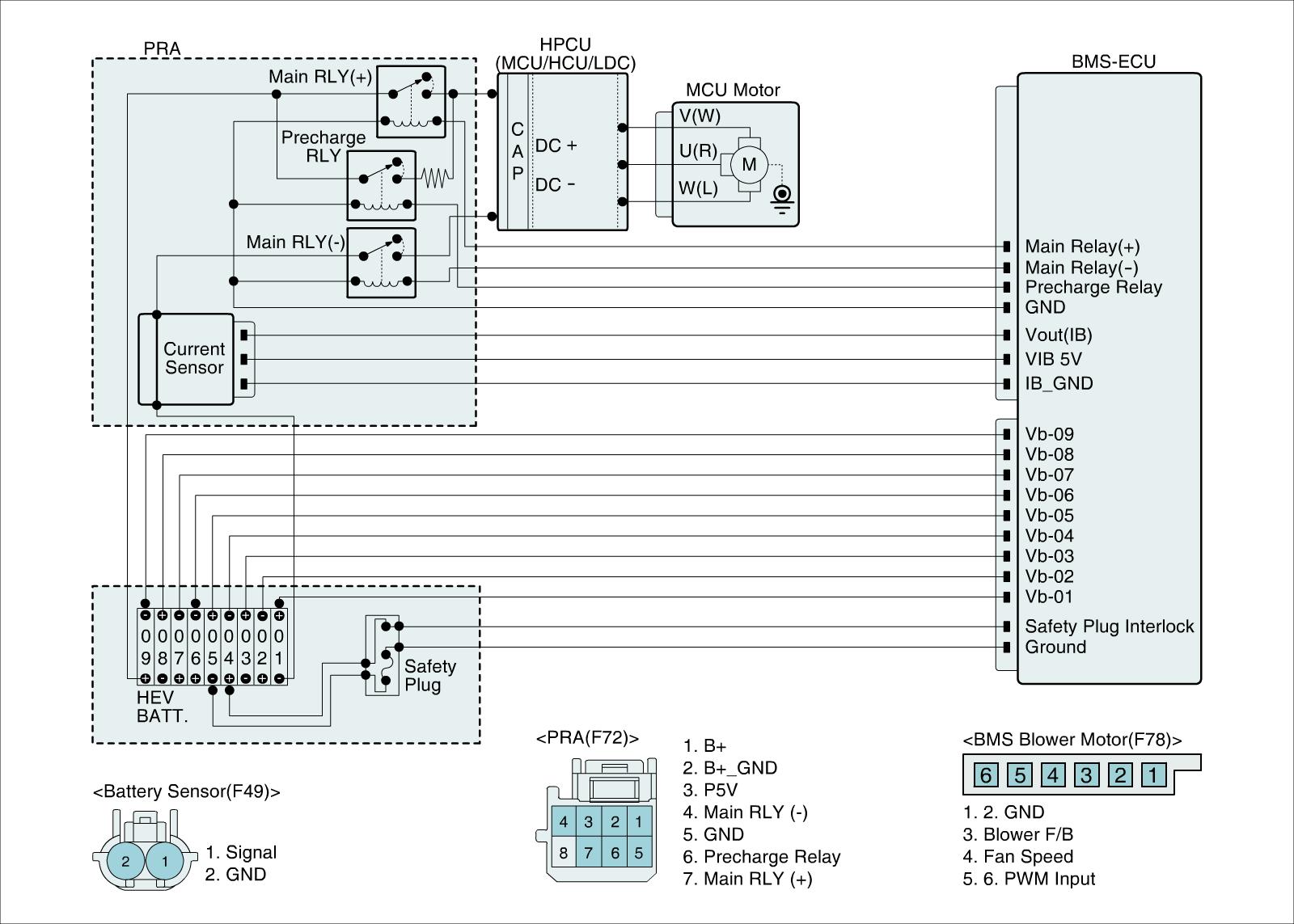

Diagnostic Circuit Diagram






















Signal Waveform & Data

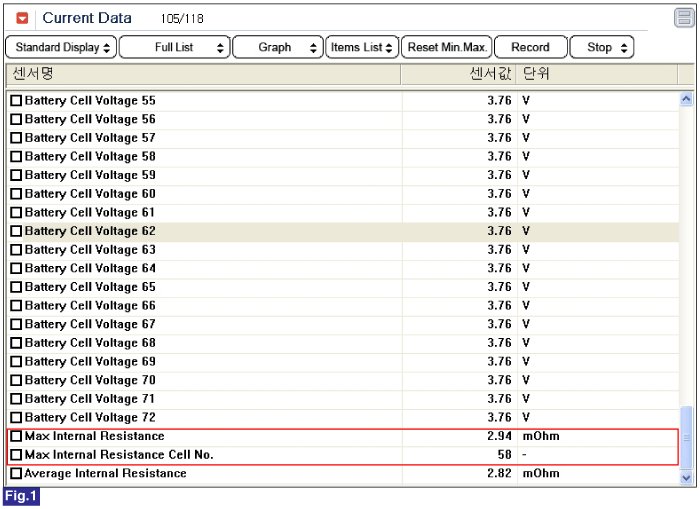

Fig.1) SOC 47.5.% of high voltage battery,(Current Data) - the Max Cell resistance of high voltage battery in the KEY ON status.
Fig.2) SOC 47.5% of high voltage battery,(Current Data) - the Max Cell resistance of high voltage battery in the EV mode status.
