General Information

HEV Motor System
P0A7A Generator Inverter Performance - General Information

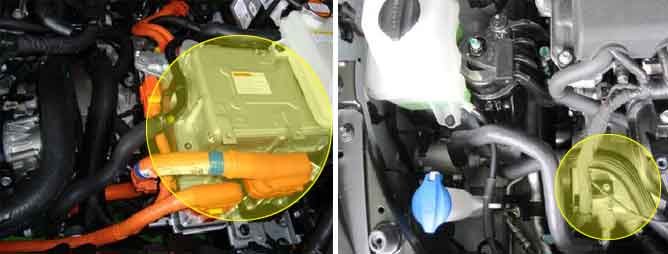

Component Location





General Description

The Motor Control Unit (MCU) supplies AC voltage to both the Drive Motor and the Hybrid Starter Generator (HSG). The Drive Motor provides output torque to the drivetrain and the HSG starts the gasoline engine. The MCU uses two internal Inverters to convert the input DC high voltage into output AC voltage.

NOTE:
When at EV Ready status the HSG is operational and may begin turning at any time. Stay clear of the drive belt during this time.

DTC Description

If the MCU sets P0A7A when there is an internal failure of the MCU and an open & short in HSG Motor Phase cable connector.

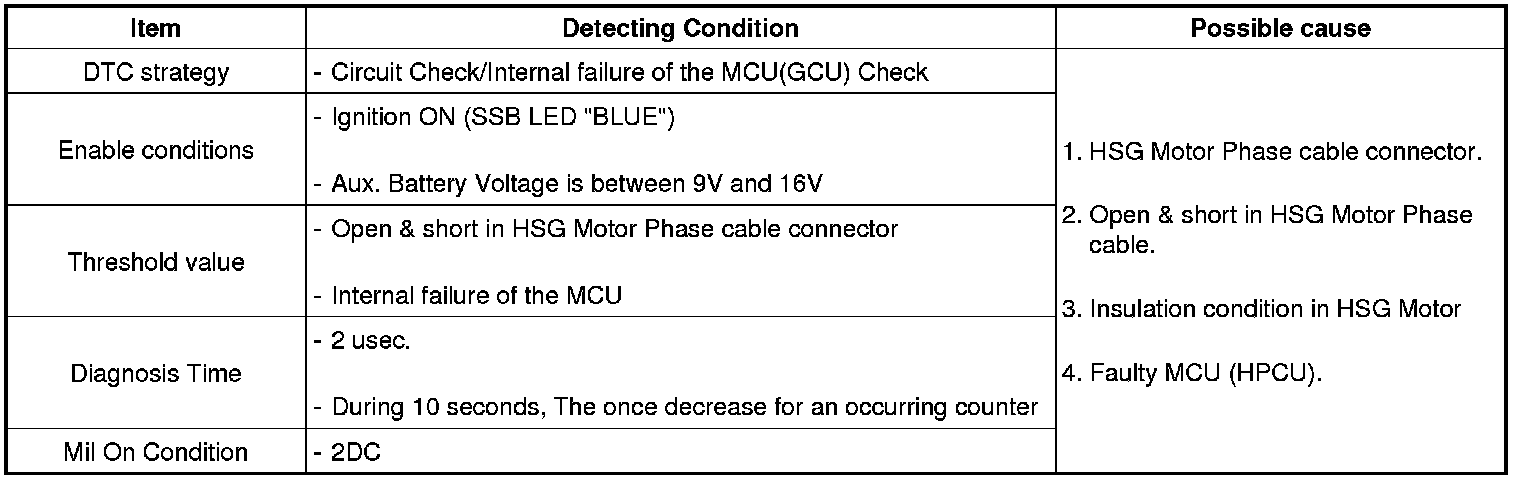

DTC Detecting Condition

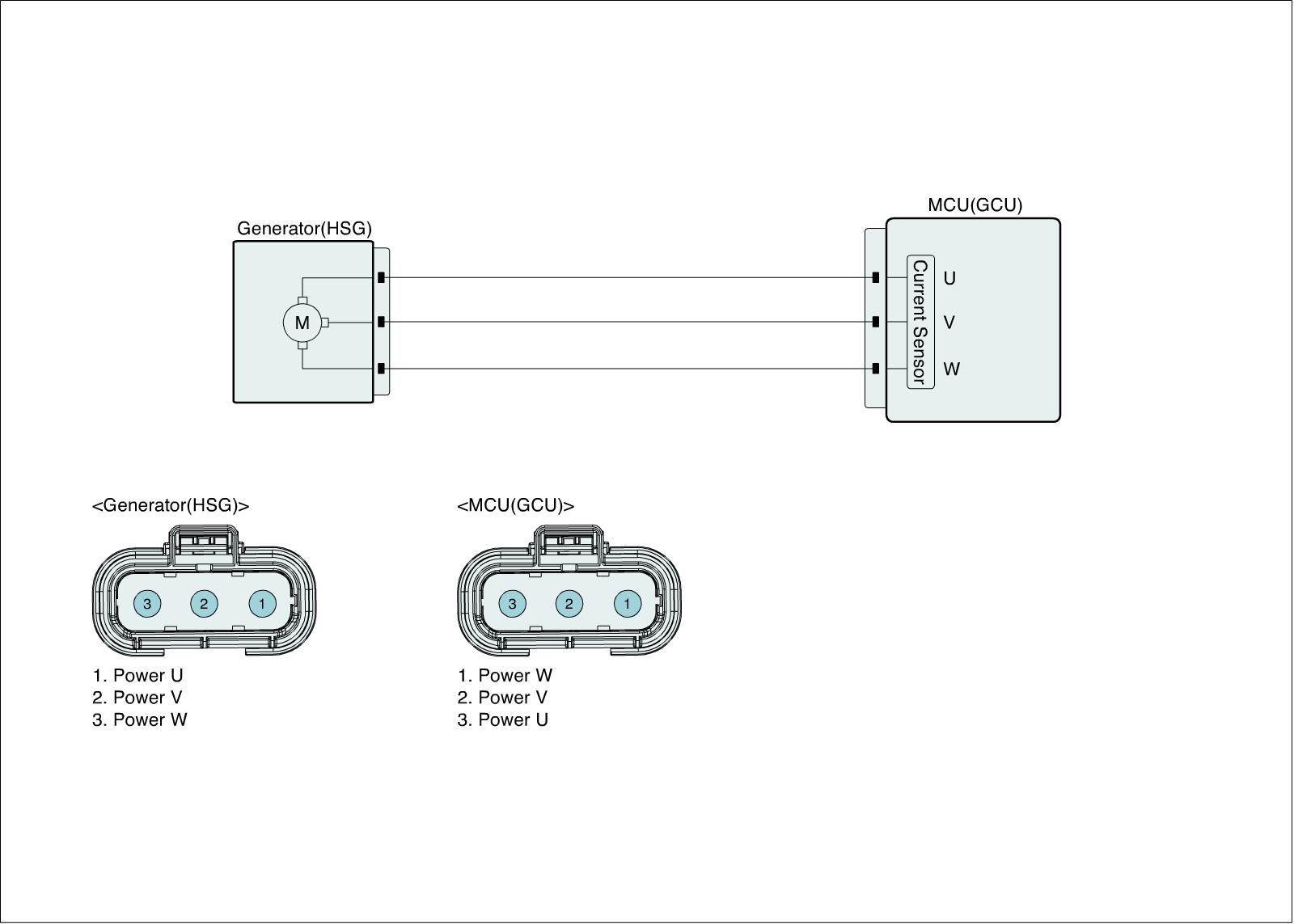

Diagnostic Circuit Diagram
