P0A78 Drive Motor \'A\' Inverter Performance - Scantool Diagnostics

Monitor DTC Status

1. Ignition ON (SSB LED "BLUE") & Vehicle "STOP".
2. Connect GDS and select "DTC Analysis" mode.
3. Click "DTC Status" on the menu bar to view DTC information.
4. If P0A78 DTC is History fault, Clear the DTCs and Operate the vehicle within DTC Enable conditions - DTC is Active(Fig.1): Go to the "Freeze Frame"(Fig.1), confirm that "Information Code" (Fig.2)
5. After check the "Information Code"(Fig.3) , next step as indicated below.

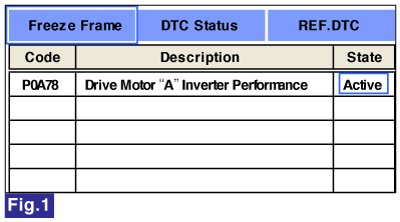

Fig.1) DTC Status

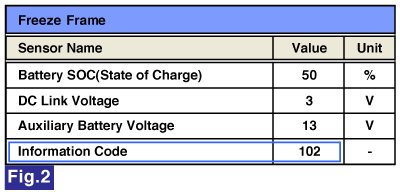

Fig.2) Freeze Frame Data

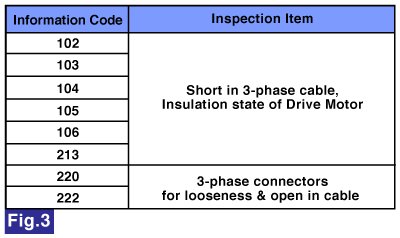

Fig.3) DTC information status

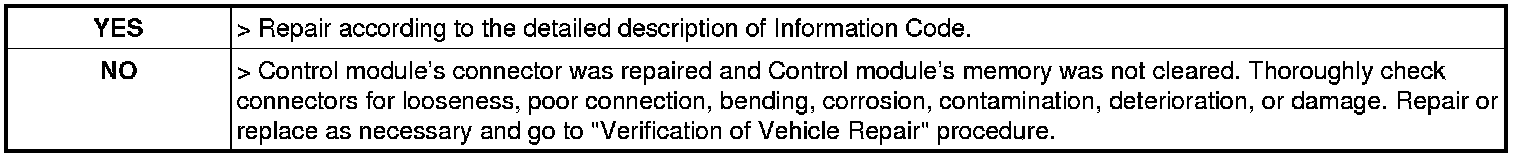

6. Is parameter displayed "Active"?
