Component Inspection

HEV Motor System
P0A78 Drive Motor \'A\' Inverter Performance - Inspection/Repair:_:Component Inspection

Component Inspection

Check Drive Motor
1. Ignition OFF.
2. Disconnect safety plug from the main battery (Wait for 5 minutes after OFF).
3. Disconnect Drive Motor Cable and MCU main harness connector.

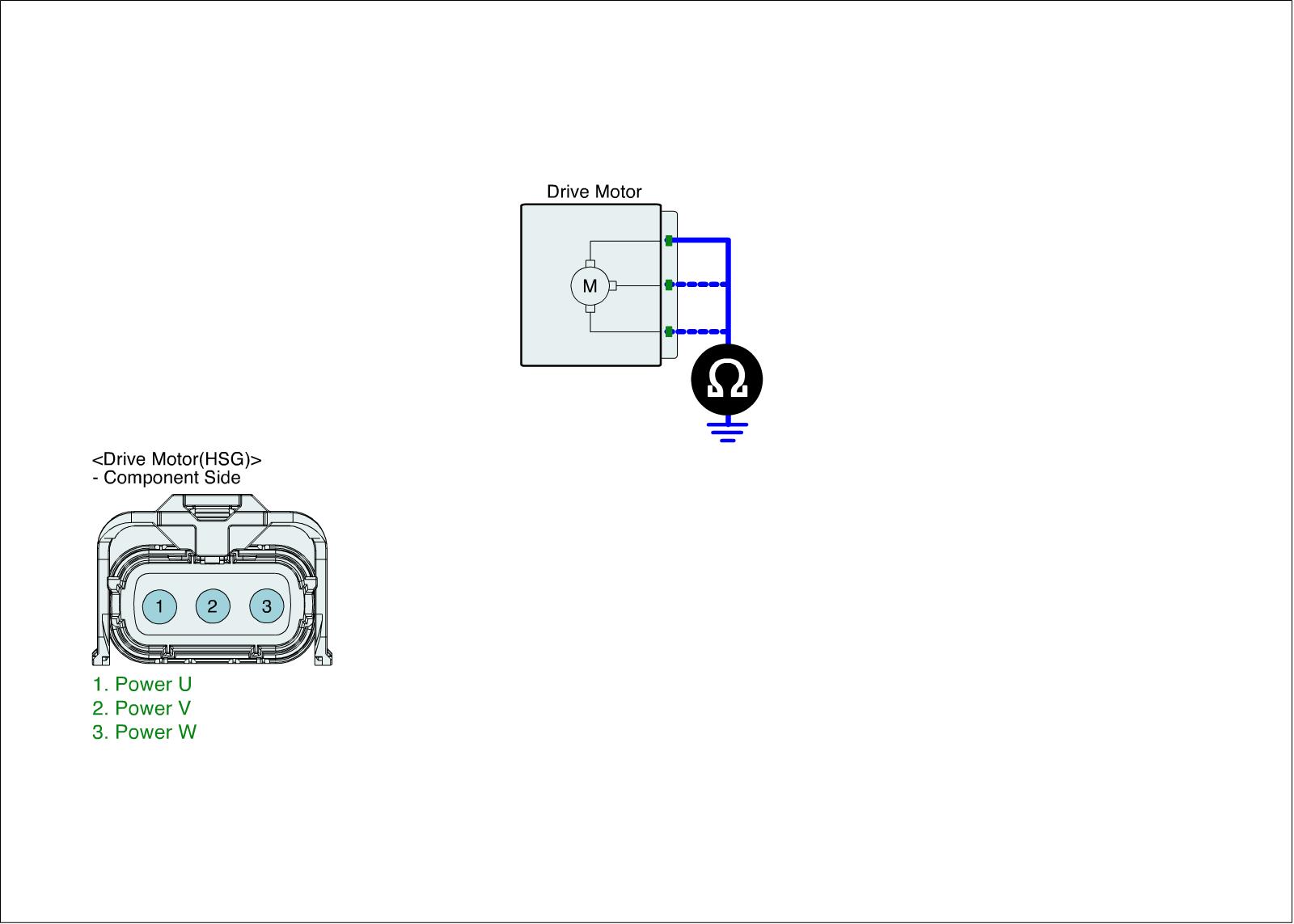

4. Portable Insulation Tester connect individually U,V,W cable terminal in Drive Motor and "+" red porbe.
5. Portable Insulation Tester check the resistance between "-" terminal-Chassis(GND).
** 1)Insulation Tester Probe Switching may damage the Vehicle.
2)Check again after disassembling the T/M Ass'y from vehicle.

Specification :upper 10MOhms @ DC 500V

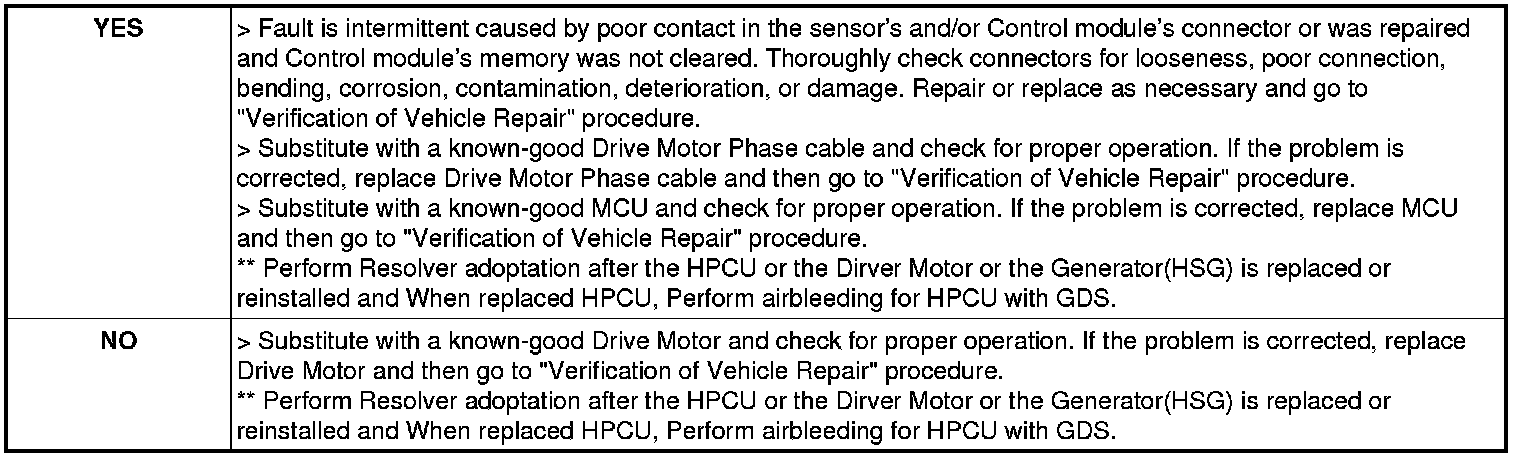

6. Is the measured resistance within specifications?
