P0A72 Generator Phase V Current - General Information

Component Location





General Description

The Motor Control Unit (MCU) supplies AC voltage to both the Drive Motor and the Hybrid Starter Generator (HSG). The Drive Motor provides output torque to the drivetrain and the HSG starts the gasoline engine. The Generator Current Sensor is located in the MCU.

NOTE:
** NOTE: When at EV Ready status the HSG is operational and may begin turning at any time. Stay clear of the drive belt during this time.

DTC Description

The MCU sets P0A72 when there is a fault with the Generator V Current Sensor.

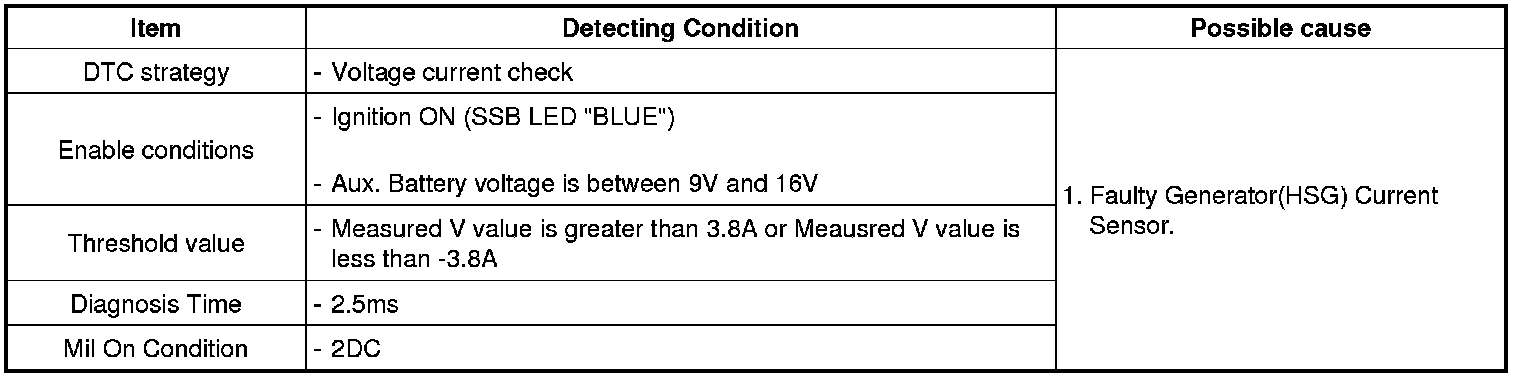

DTC Detecting Condition





Diagnostic Circuit Diagram
