P0A4D Generator Position Sensor Circuit Low - General Information

Component Location





General Description

The Motor Control Unit (MCU) supplies AC voltage to both the Drive Motor and the Hybrid Starter Generator (HSG). The Drive Motor provides output torque to the drivetrain and the HSG starts the gasoline engine. The Generator Position Sensor detects the HSG position.

NOTE:
** NOTE: When at EV Ready status the HSG is operational and may begin turning at any time. Stay clear of the drive belt during this time.

DTC Description

The MCU sets P0A4D if the Generator Position Sensor circuit is open.

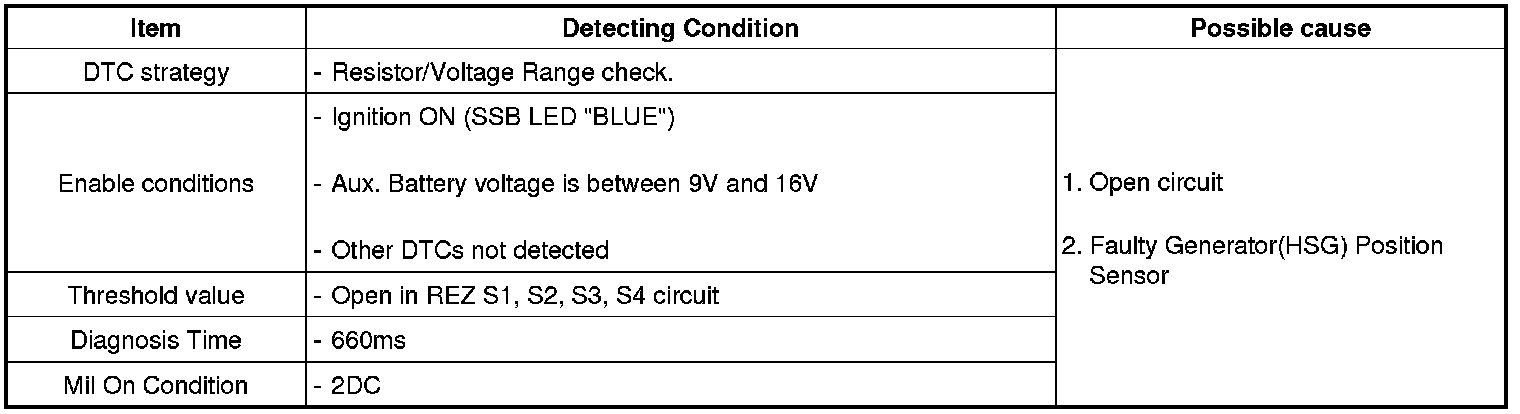

DTC Detecting Condition

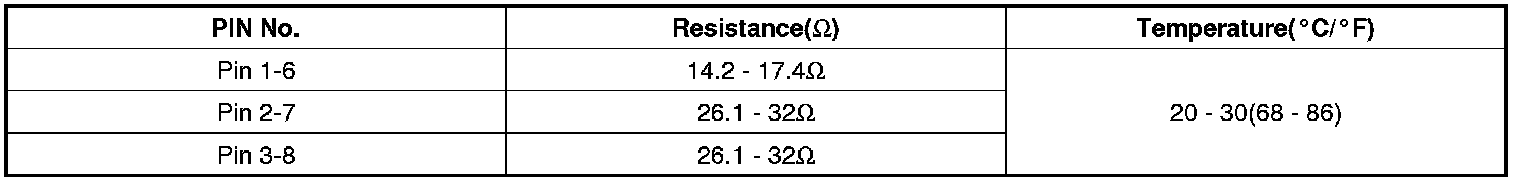

Specification





Diagnostic Circuit Diagram
