Component Inspection

HEV Motor System
P0A4C Generator Position Sensor Circuit Range/Performance - Inspection/Repair:_:Component Inspection

Component Inspection

Check Generator temperature sensor
1. Ignition OFF
2. Disconnect safety plug from the main battery (Wait for more than 5 minutes after disconnecting)

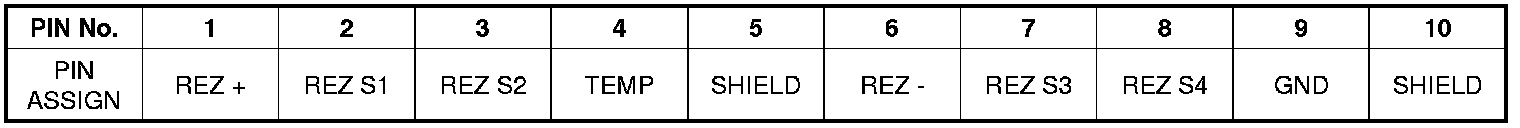

3. Disconnect Generator(HSG) Position Sensor and MCU main harness connector.
4. Measure resistance between signal and ground terminals of Generator(HSG) Position Sensor. (Component Side)

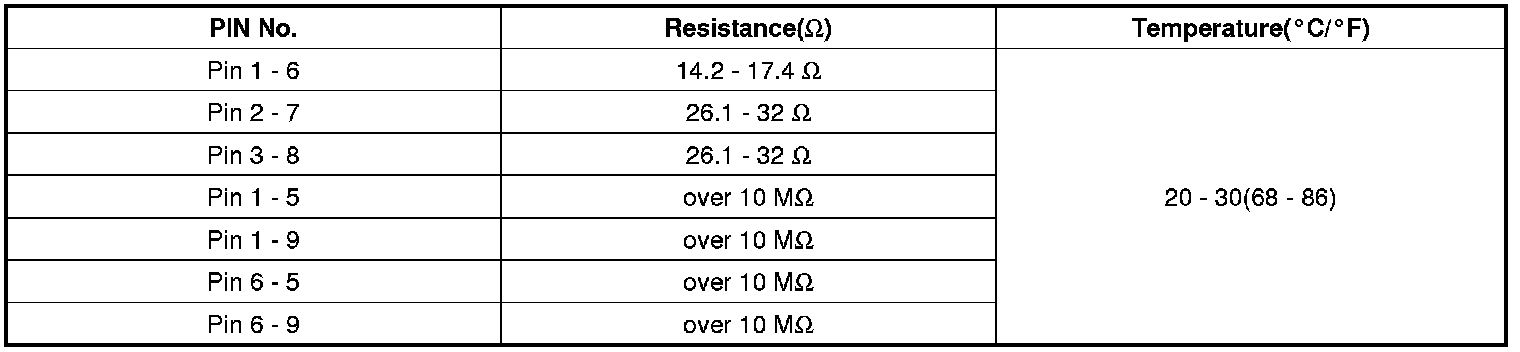

Specification :

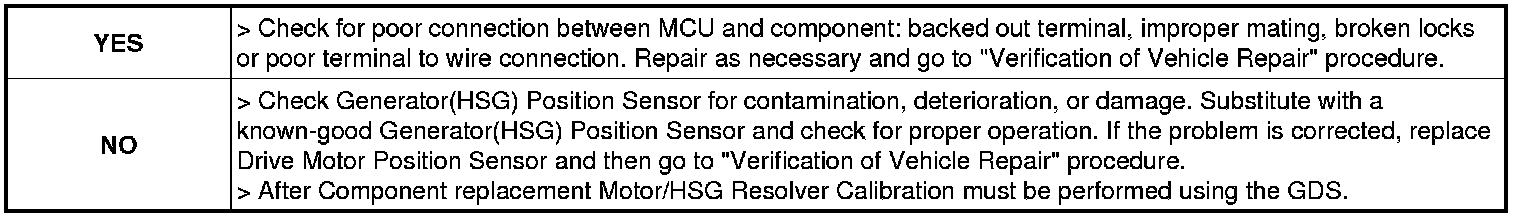

5. Is the measured resistance within specifications?
