P0A41 Drive Motor \'A\' Position Sensor Circuit Low - General Information

Component Location





General Description

The Motor Control Unit (MCU) supplies AC voltage to both the Drive Motor and the Hybrid Starter Generator (HSG). The Drive Motor provides output torque to the drivetrain and the HSG starts the gasoline engine.
The Drive Motor Position Sensor detects the location of both the Drive Motor Stator and Rotor to generate proper torque.

DTC Description

The MCU sets P0A41 if the Drive Motor Position Sensor circuit is open.

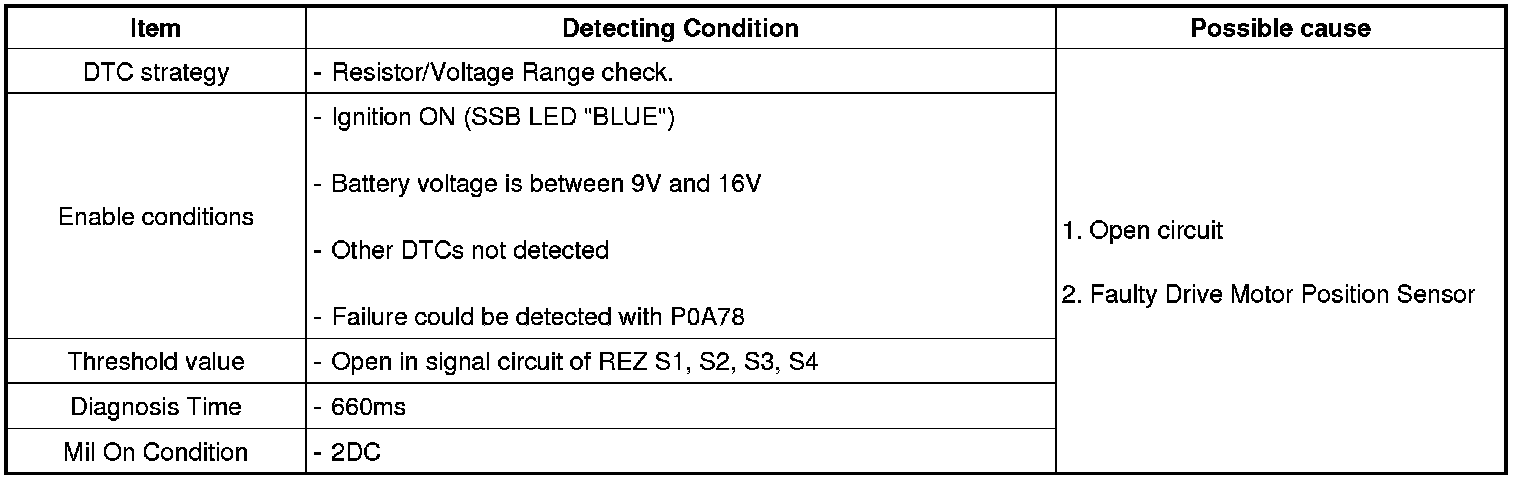

DTC Detecting Condition

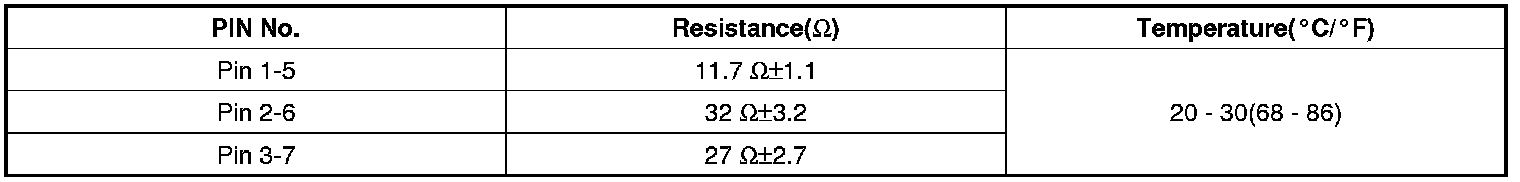

Specification





Diagnostic Circuit Diagram
