Component Inspection





HEV Motor System
P0A40 Drive Motor \'A\' Position Sensor Circuit Range/Performance - Inspection/Repair:_:Component Inspection

Component Inspection

Check Generator temperature sensor
1. Ignition OFF
2. Disconnect safety plug from the main battery. (Wait for more than 5 minutes after disconnecting)
3. Disconnect Drive Motor Position Sensor connector.
4. Measure resistance between signal and ground terminals of Drive Motor Position Sensor. (Component Side)

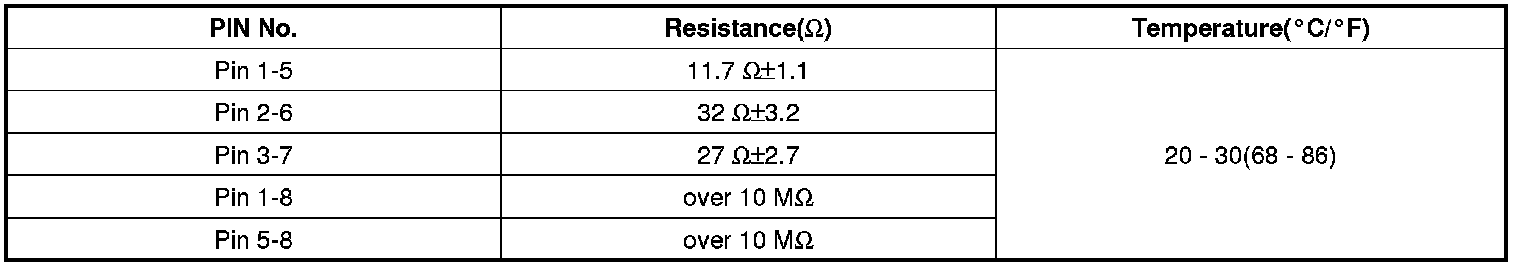

Specification :

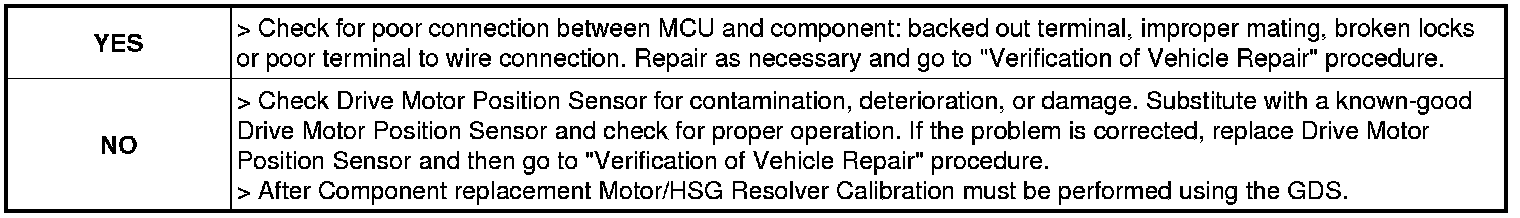

5. Is the measured resistance within specifications?
