Component Inspection

HEV Motor System
P0A3B Generator Over Temperature - Inspection/Repair:_:Component Inspection

Component Inspection

Check Generator temperature sensor
1. Ignition OFF
2. Disconnect safety plug from the main battery. (Wait for more than 5 minutes after disconnecting)
3. Disconnect Generator Temperature Sensor and MCU main harness connector.
4. Measure resistance between signal and ground terminals of Generator Temperature Sensor. (Component Side)

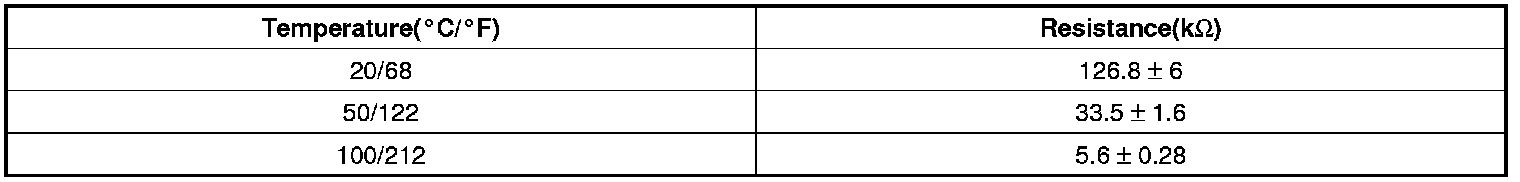

Specification :









** Resistance value of Drive Motor Temperature sensor.
5. Is the measured resistance within specifications?
