Component Inspection

HEV Motor System
P0A37 Generator Temperature Sensor Circuit Range/Performance - Inspection/Repair:_:Component Inspection

Component Inspection

Check Generator temperature sensor
1. Ignition OFF
2. Disconnect safety plug from the main battery. (Wait for more than 5 minutes after disconnecting)
3. Disconnect Generator Temperature Sensor and MCU main harness connector.

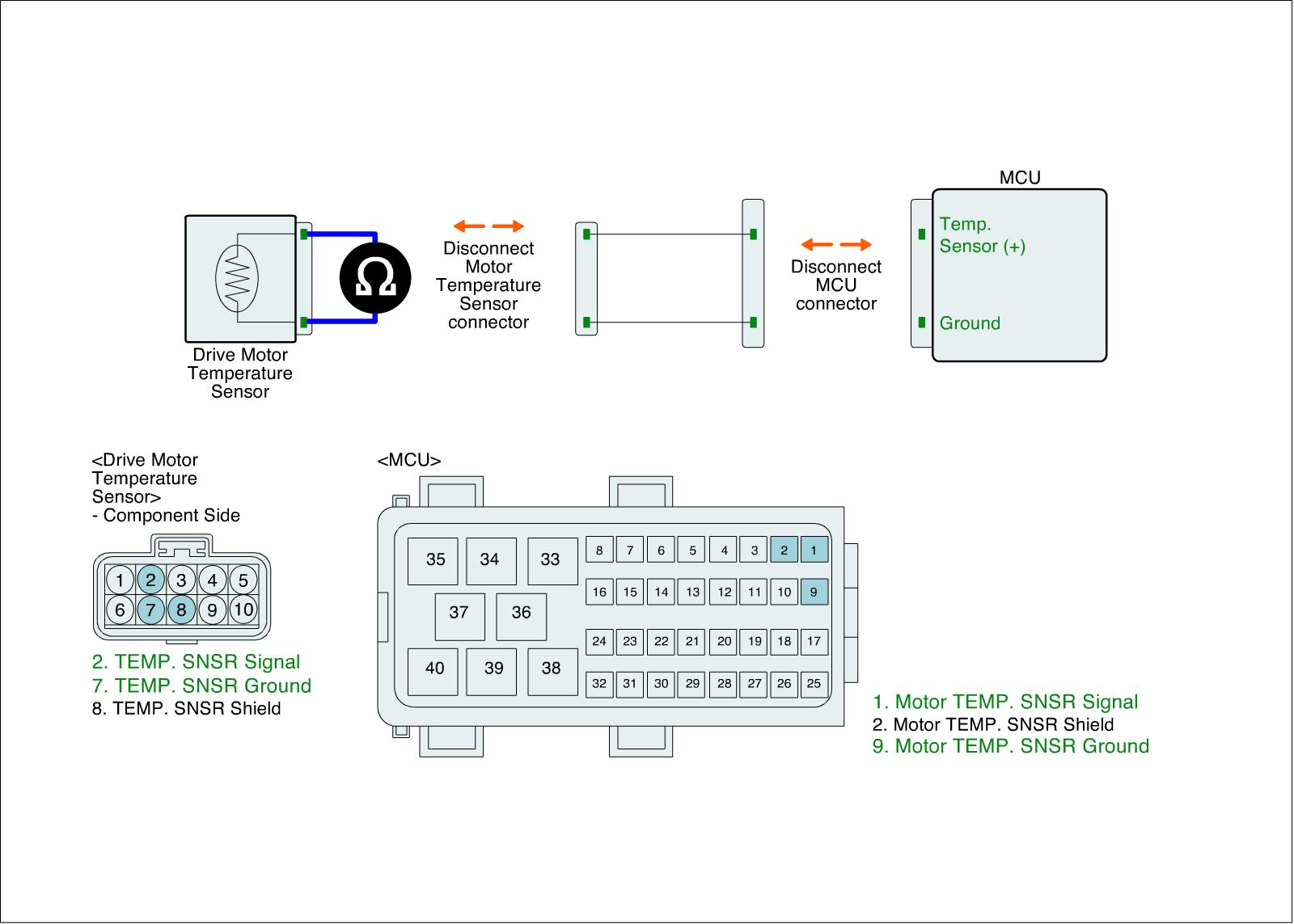

4. Measure resistance between signal and ground terminals of Generator Temperature Sensor. (Component Side)

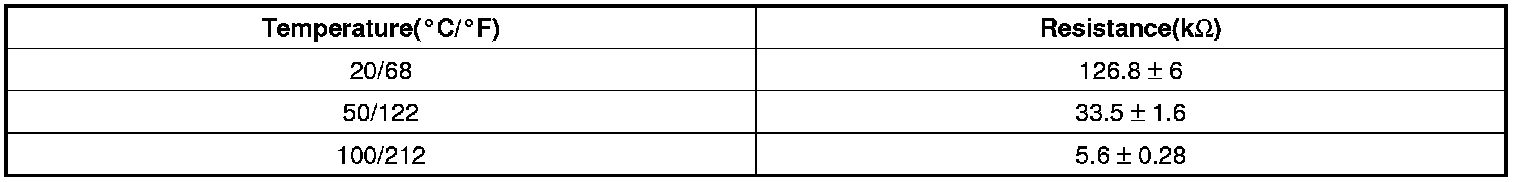

Specification :









** Resistance value of Drive Motor Temperature sensor.

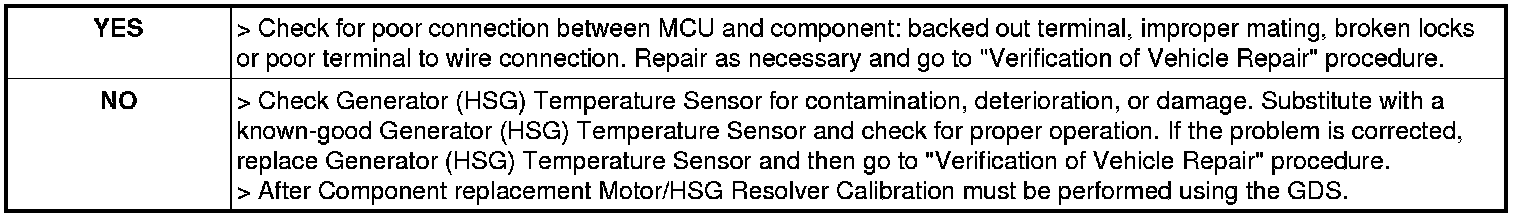

5. Is the measured resistance within specifications?
