P0A2F Drive Motor \'A\' Over Temperature - General Information

Component Location





General Description

The Motor Control Unit (MCU) supplies AC voltage to both the Drive Motor and the Hybrid Starter Generator (HSG). The Drive Motor provides output torque to the drivetrain and the HSG starts the gasoline engine. The Drive Motor Temperature Sensor is located in the Drive Motor. The MCU alters Drive Motor torque pending Drive Motor temperature.

DTC Description

The MCU sets P0A2F when the Drive Motor Temperature value is higher than 365°F.

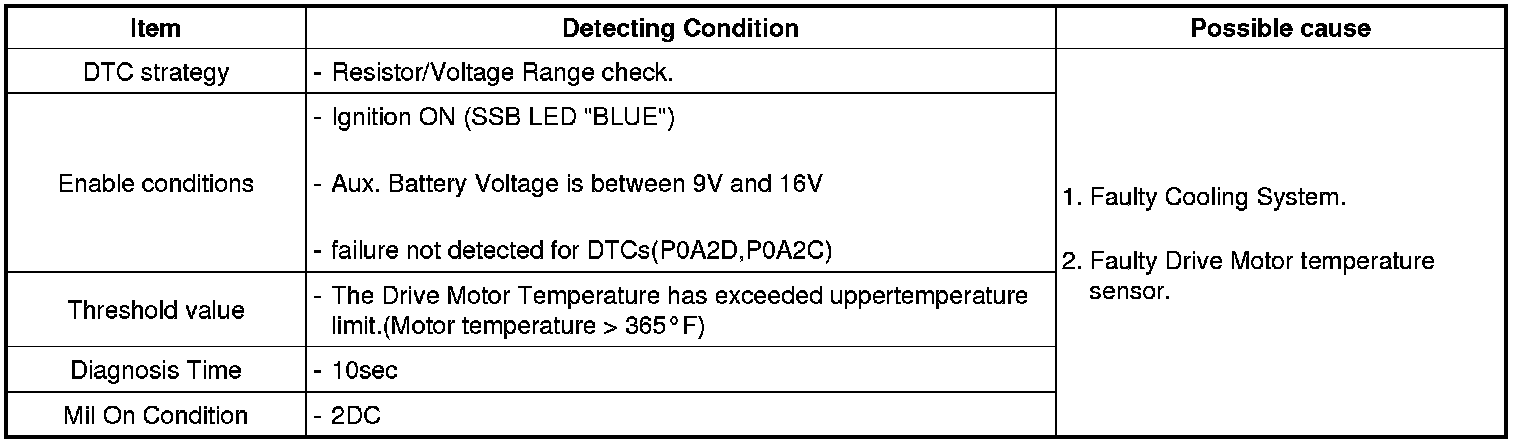

DTC Detecting Condition





Specification

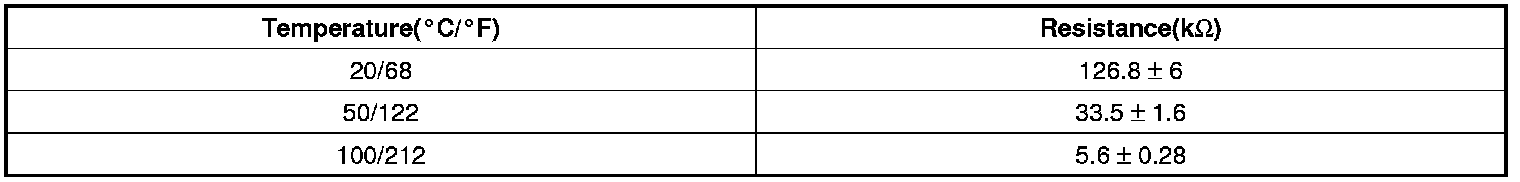

** Resistance value of Drive Motor Temperature sensor.

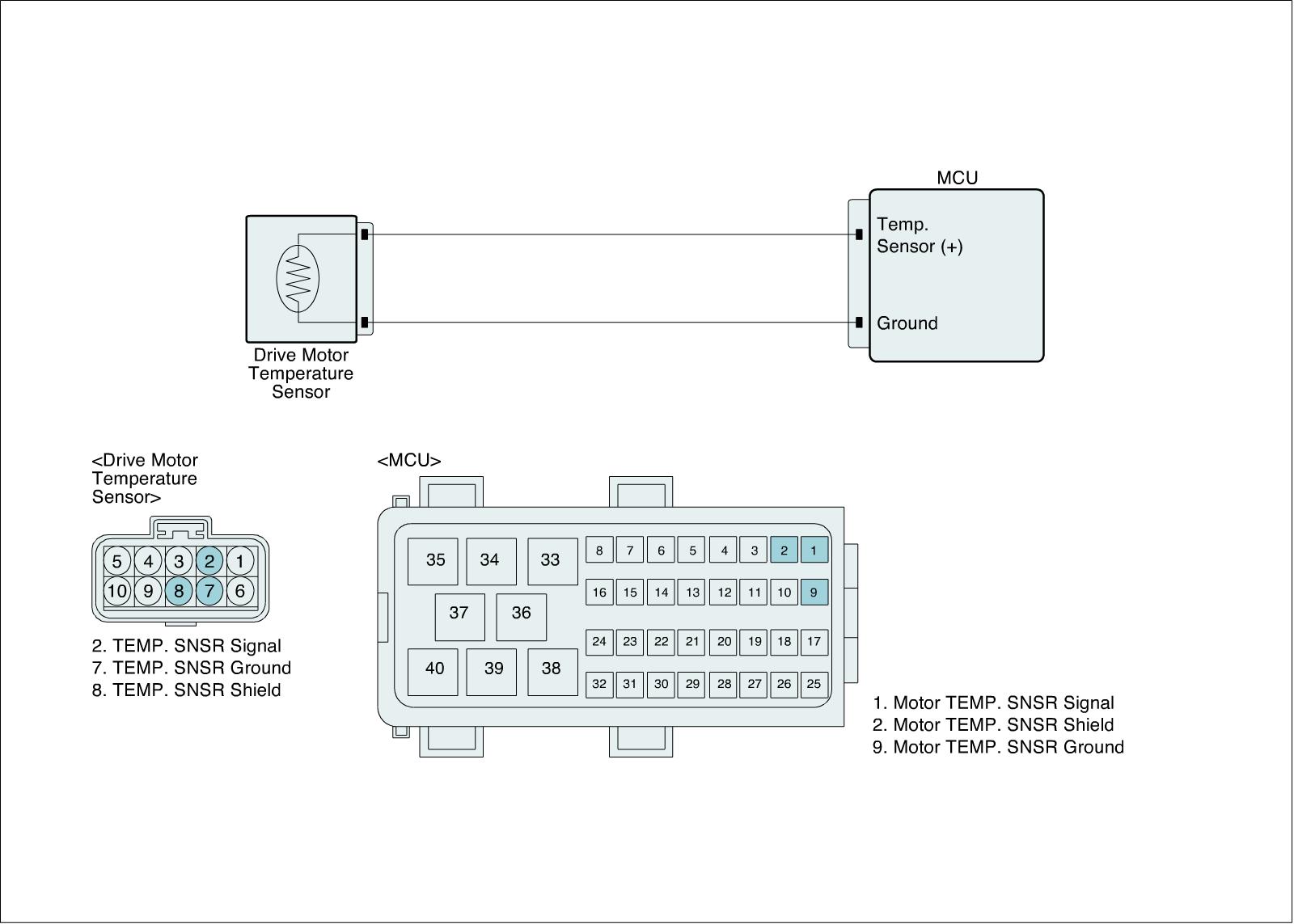

Diagnostic Circuit Diagram
