P0A2D Drive Motor \'A\' Temperature Sensor Circuit High - General Information

Component Location





General Description

The Motor Control Unit (MCU) supplies AC voltage to both the Drive Motor and the Hybrid Starter Generator (HSG). The Drive Motor provides output torque to the drivetrain and the HSG starts the gasoline engine. The Drive Motor Temperature Sensor is located in the Drive Motor. The MCU alters Drive Motor torque pending Drive Motor temperature.

DTC Description

The MCU sets DTC P0A2C if the Drive Motor Temperature sensor circuit is open or shorted to battery.

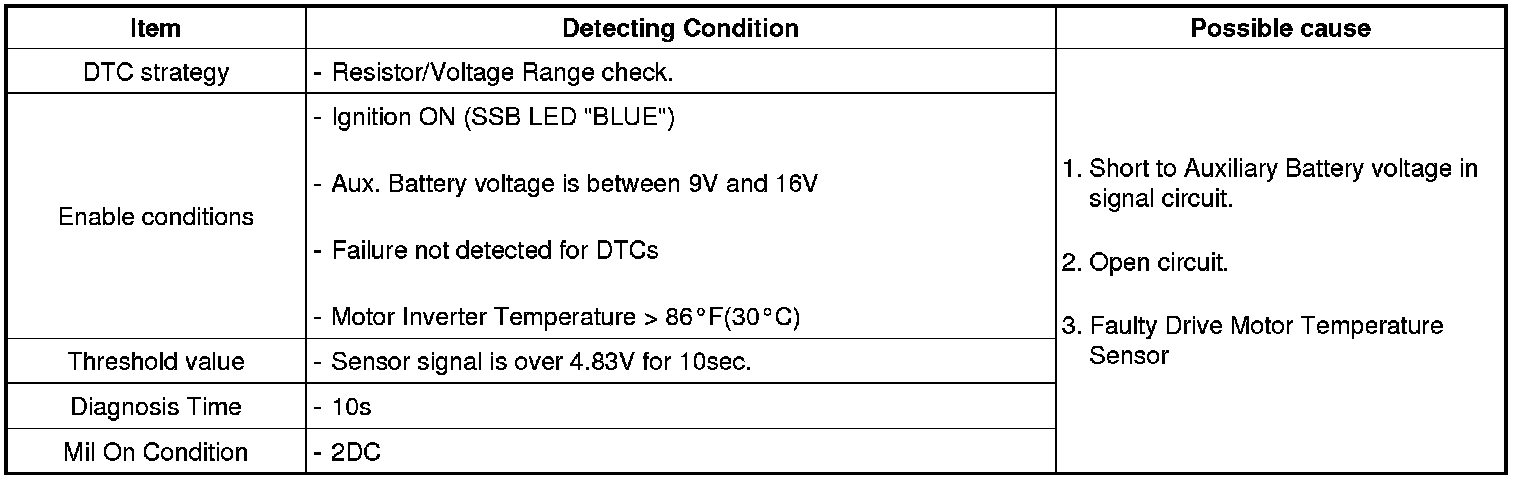

DTC Detecting Condition





Specification

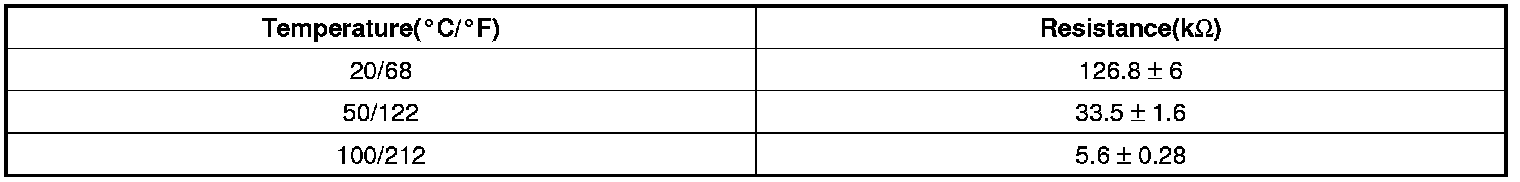

** Resistance value of Drive Motor Temperature sensor.

Diagnostic Circuit Diagram
