P0A2C Drive Motor \'A\' Temperature Sensor Circuit Low - Scantool Diagnostics

Monitor DTC Status

1. Ignition ON (SSB LED "BLUE") & Vehicle "STOP".
2. Connect GDS and select "DTC Analysis" mode.
3. Click "DTC Status" on the menu bar to view DTC information.
4. Confirm that the "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in Freeze Frame Data or Enable Conditions.
5. Read the "DTC Status" parameter.




6. Is parameter displayed "Present fault"?






Monitor Scantool Data

1. Ignition ON/Hybrid Ready (Cluster Indicator "READY" On) and Vehicle Parked.
2. Connect GDS and select "Data Analysis" mode.
3. Selet "Currnet Data"mode and monitor "Drive Motor temperature" parameter.

Specification :- 4 - 390°F(-20 - 200°C)

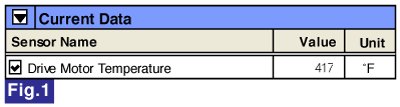

Fig.1) Parameter of "Drive Motor Temperature" will be fixed at 417°F, if there is any fault in Motor Temperature.

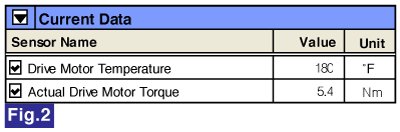

Fig.2) Check Driver Motor temperature value changes as the Drive Motor Torque value goes up.
4. Is the Temperature Sensor abnormal ?
