Component Inspection

HEV Motor System
P0A2C Drive Motor \'A\' Temperature Sensor Circuit Low - Inspection/Repair:_:Component Inspection

Component Inspection

Check Motor temperature sensor
1. Ignition OFF
2. Disconnect safety plug from the main battery. (Wait for more than 5 minutes after disconnecting)
3. Disconnect Drive Motor temperature sensor and MCU main harness connector.
4. Measure resistance between signal and ground terminals of Drive Motor temperature sensor. (Component Side)

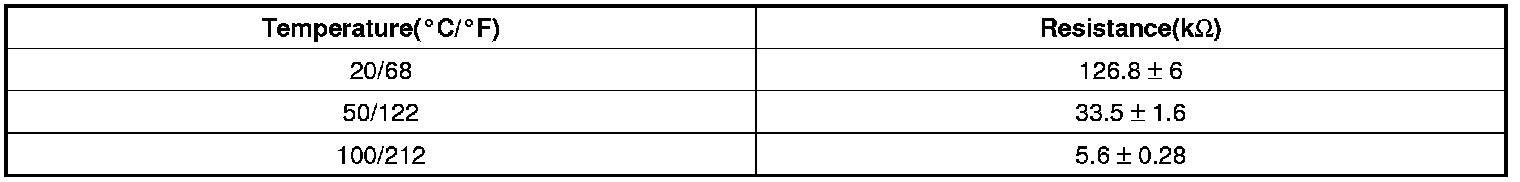

Specification :

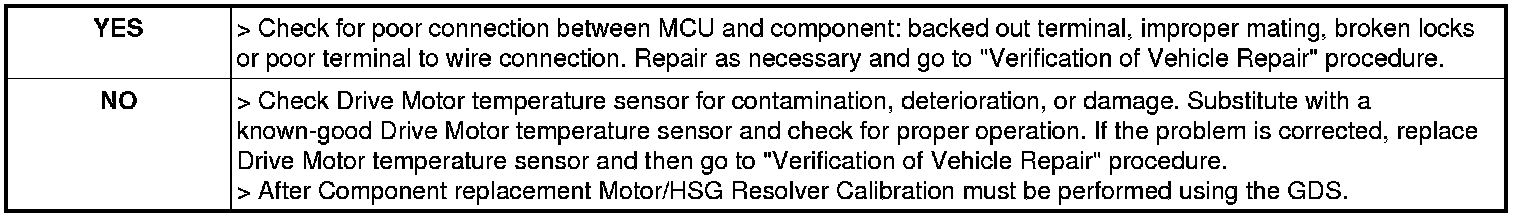

5. Is the measured resistance within specifications?
