General Information

Automatic Transaxle
P0880 TCM Power Signal Error Open/Short (GND) - General Information

Component Location





General Description

The PCM(TCM) monitored supplied voltage to ATM solenoid valve. This voltage is without specific, then gear is fixed 4th speed.

DTC Description

This DTC is set when output voltage from PCM/TCM to solenoid valve exceeds normal operating range.

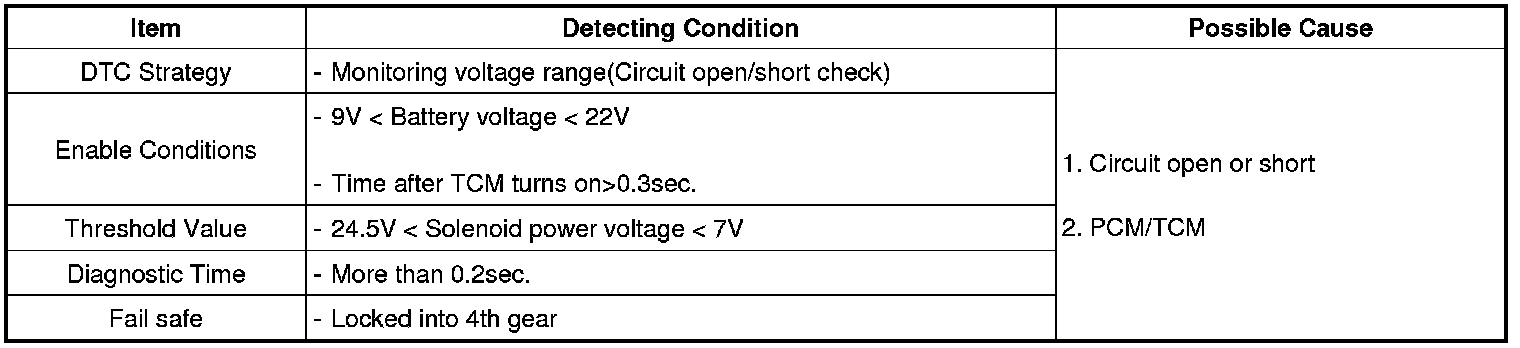

DTC Detecting Condition





Diagnostic Circuit Diagram
