P0842 Transmission Fluid Pressure Sensor/Switch \'A\' Circuit Low - Inspection/Repair:_:Component Inspection

Component Inspection

Pressure Sensor
1. Ignition ON (SSB LED "BLUE") & Vehicle "STOP".
2. Connect GDS and select "Data Analysis" mode.
3. Selet "Currnet Data"mode and monitor "Engine Clutch Fluid Pressure" parameter.
4. Check data change between Engine Clutch operation mode and Engine Clutch Not operation mode.

Specification :

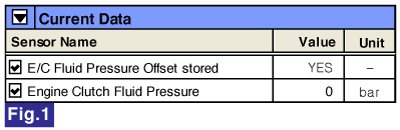

Fig.1) Test Condition : Vehicle is in Idle Condition

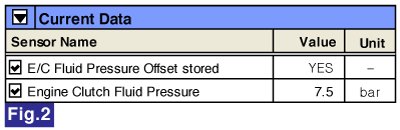

Fig.2) Test Condition : Engine Clutch is in Lockup Condition

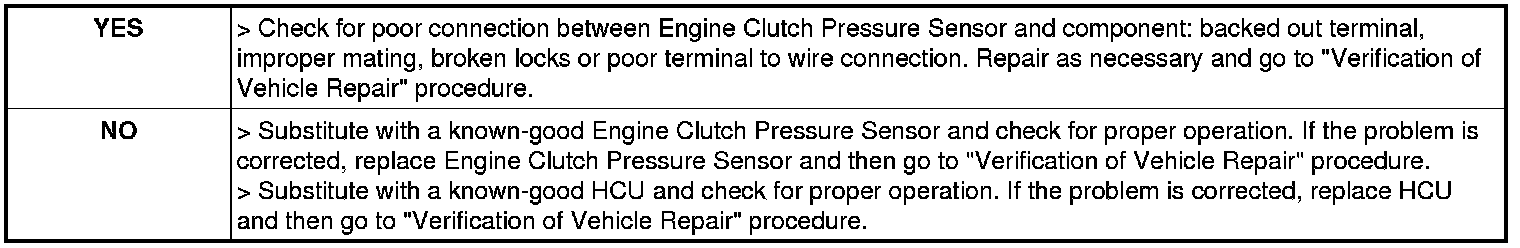

5. Is the measured data within specifications?
