P0841 Transmission Fluid Pressure Sensor/Switch A Circuit Range/Performance - General Information

Component Location





General Description

The HCU uses the Engine Clutch Pressure Sensor value to control the Engine Clutch - ON/OFF/SLIP. The Engine Clutch links the engine with the electric motor.

DTC Description

When the HCU detects pressure under specifications, P0841 is set.

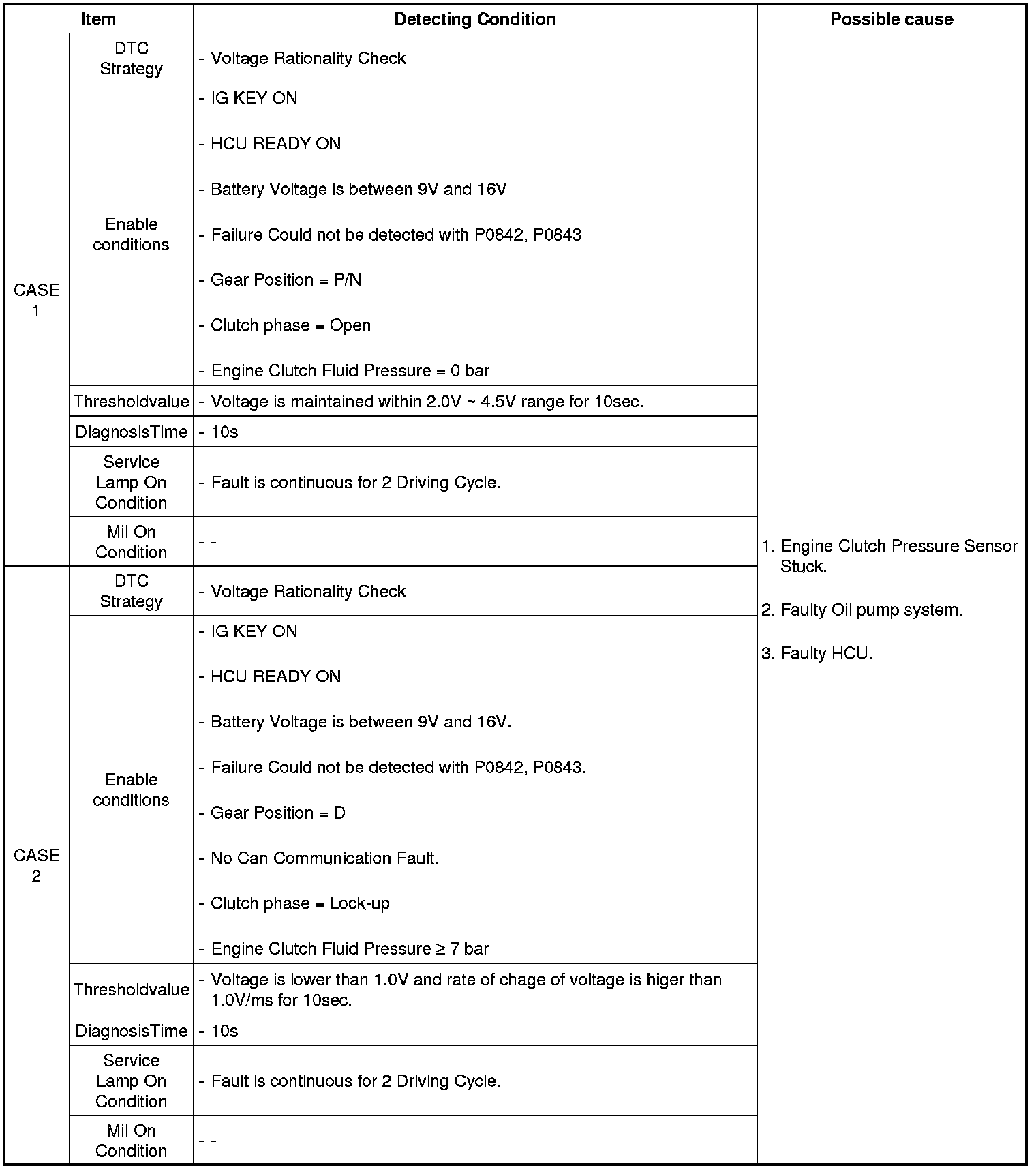

DTC Detecting Condition

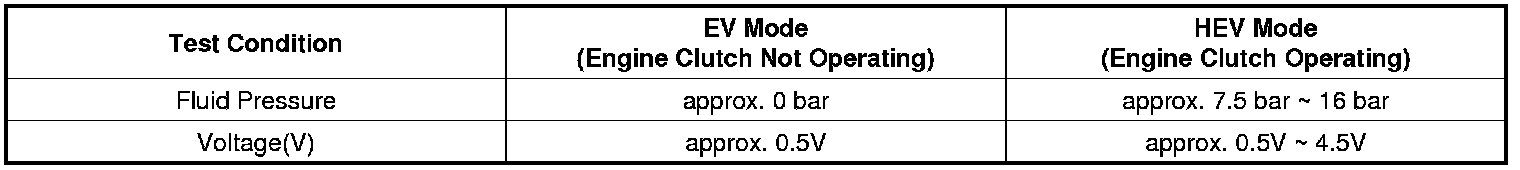

Specification





Diagnostic Circuit Diagram
