P0768 Shift Control Solenoid Valve \'D\' Electrical (OD/C) - General Information

Component Location





General Description

The PCM/TCM control OD-VFS solenoid valve by changed current for reducing OD clutch shock.

DTC Description

This DTC is set when PCM/TCM detects open or short circuit in valve harness.

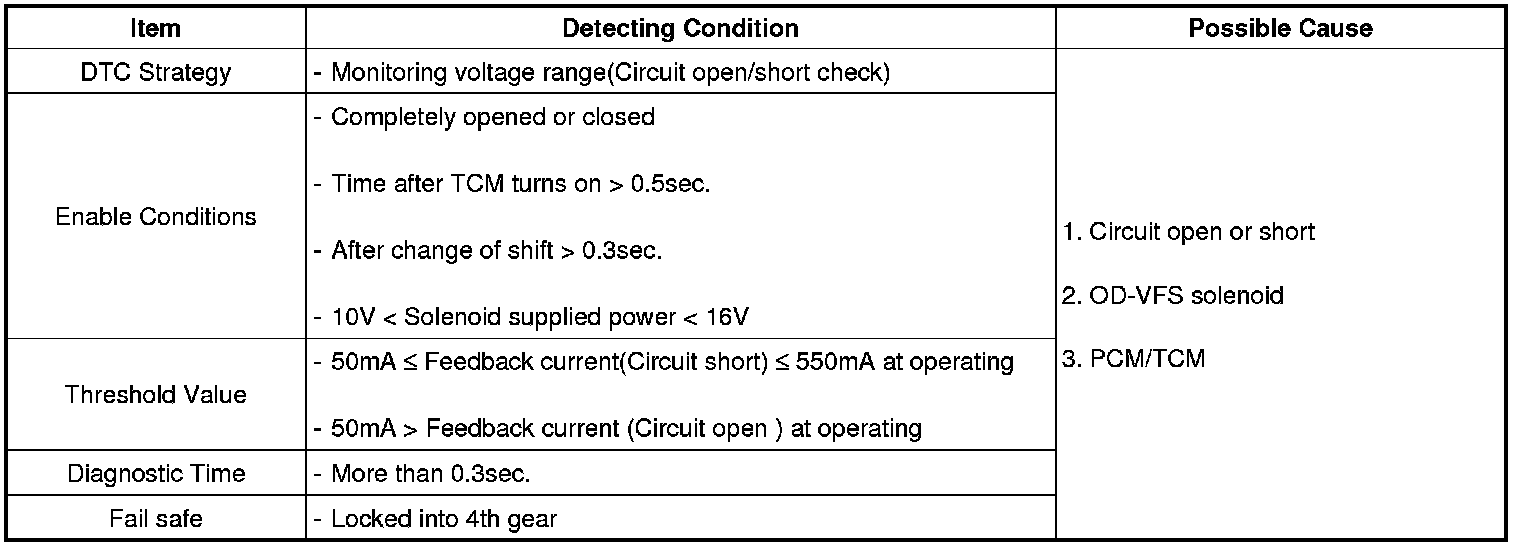

DTC Detecting Condition





Specification

- Working temperature : -40°C~150°C(-6.2 - 302°F)
- Internal resistance : 5.1 ± 0.3 Ohms( 25°C(77°F) normal temperature )

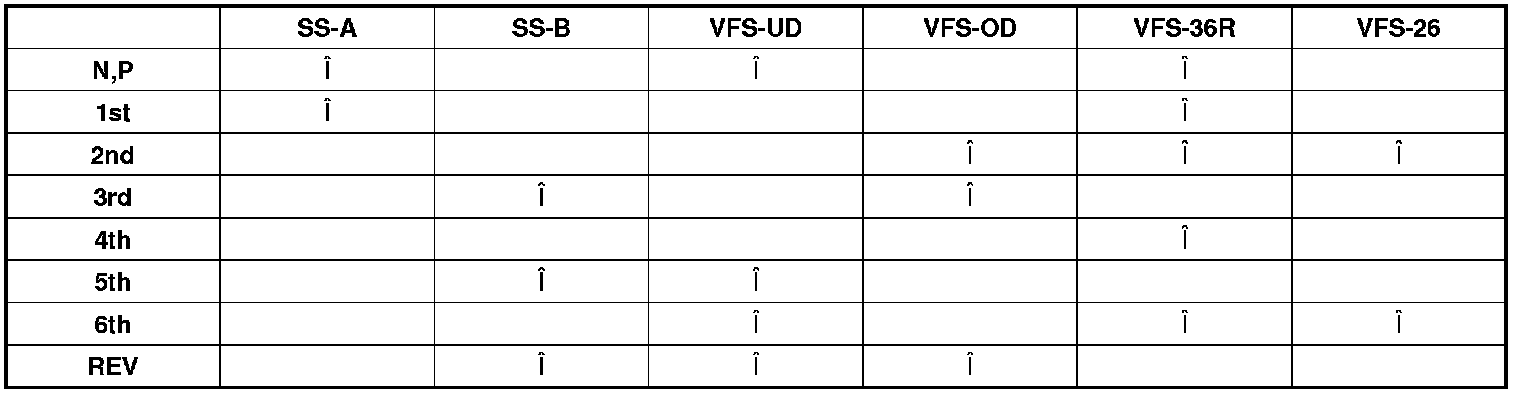

Operating mode table at each step
SOLENOID VALVE

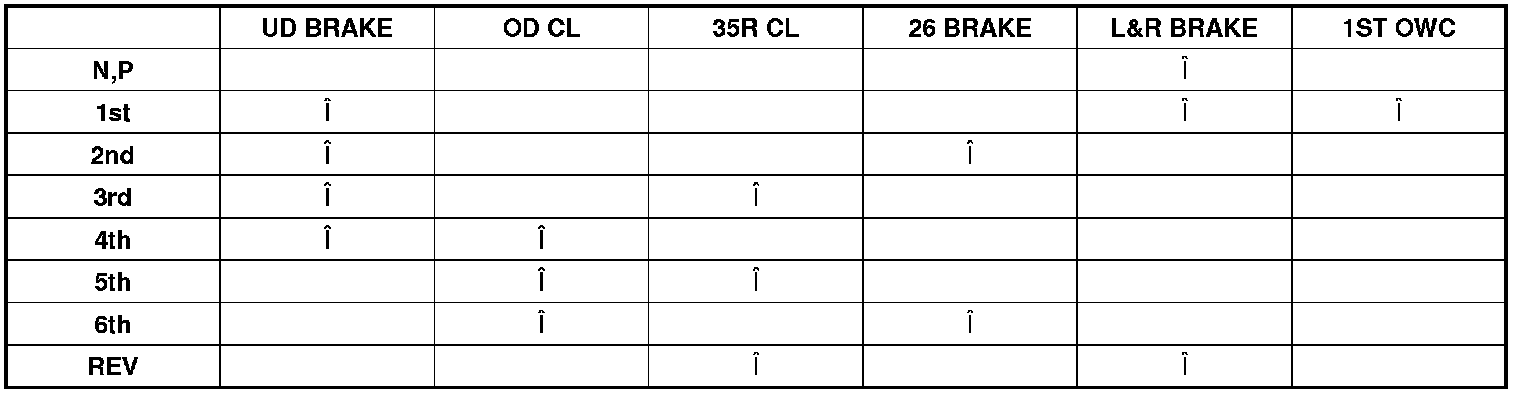

ELEMENT






Diagnostic Circuit Diagram










Signal Waveform & Data

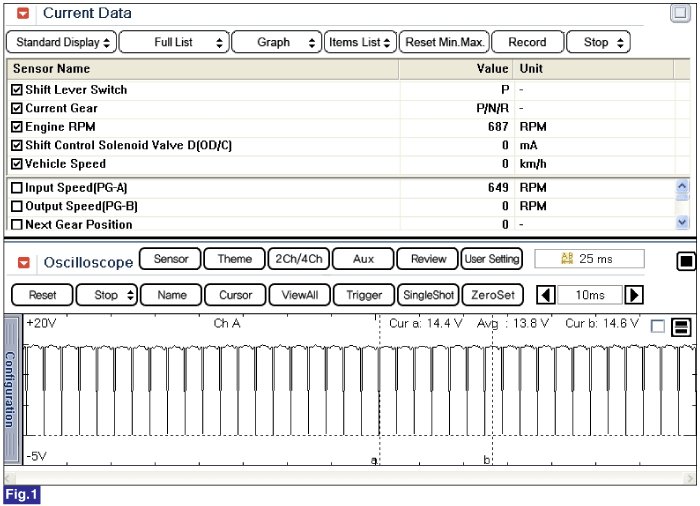

Fig 1) Wave form of OD/C-VFS
