P0763 Shift Control Solenoid Valve \'C\' Electrical (35R/C) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Engine "ON".
3. Driving 1st speed to 6th speed at D-range.
4. Select "Current Data" mode and monitor "Shift Control Solenoid Valve(35R/C-VFS)" parameter current value.

Specification :See below data

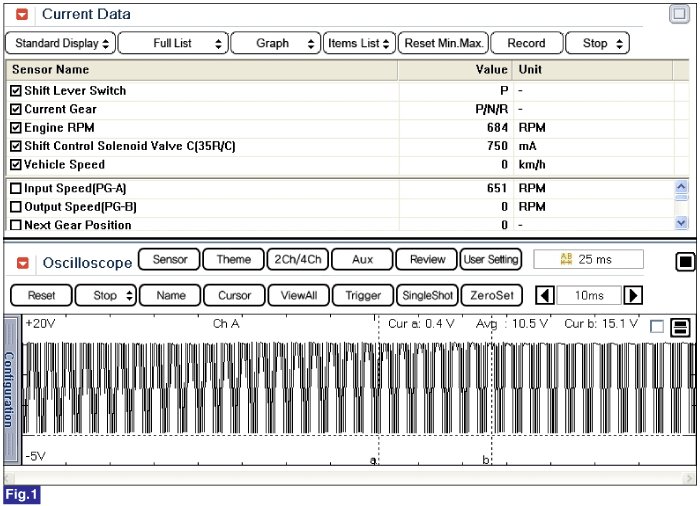

Fig 1) "P,N" range
Fig 2) "R" range
Fig 3) "D" range 1st gear

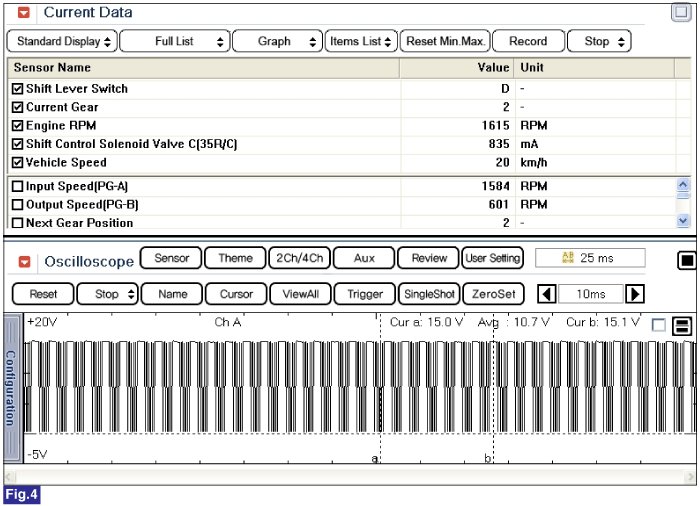

Fig 4) "D" range 2nd gear

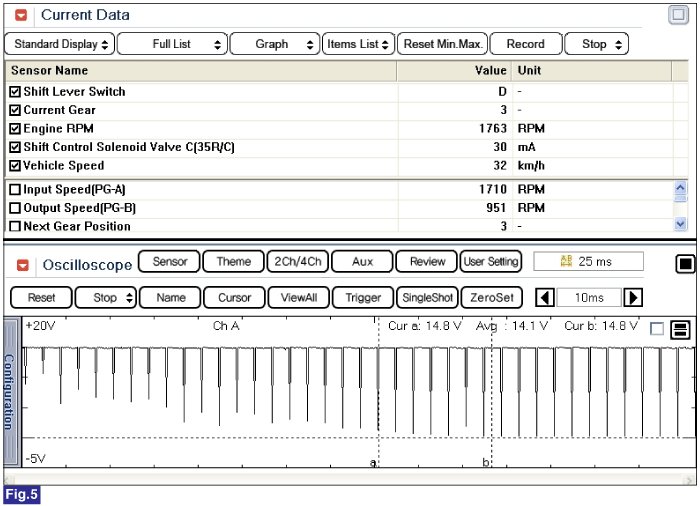

Fig 5) "D" range 3rd gear

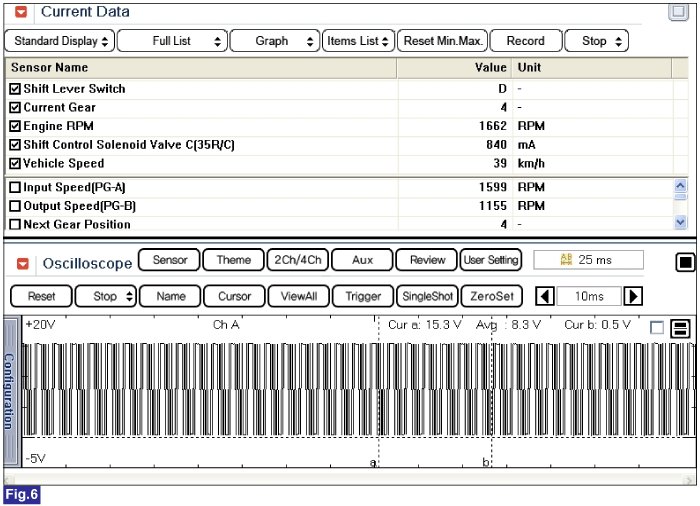

Fig 6) "D" range 4th gear
Fig 7) "D" range 5th gear

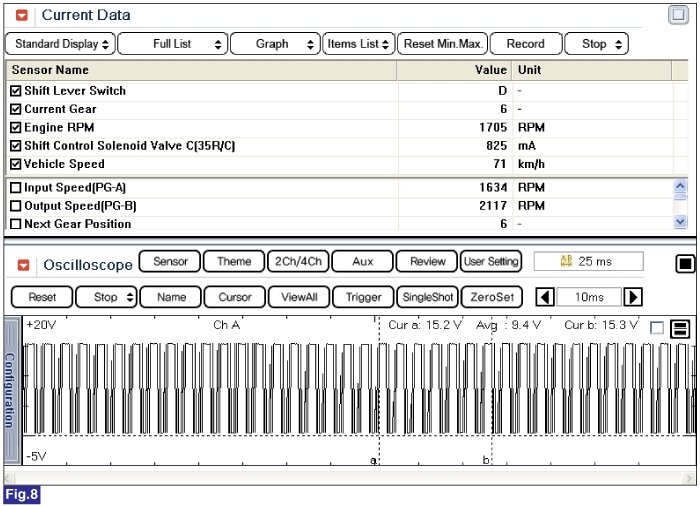

Fig 8) "D" range 6th gear

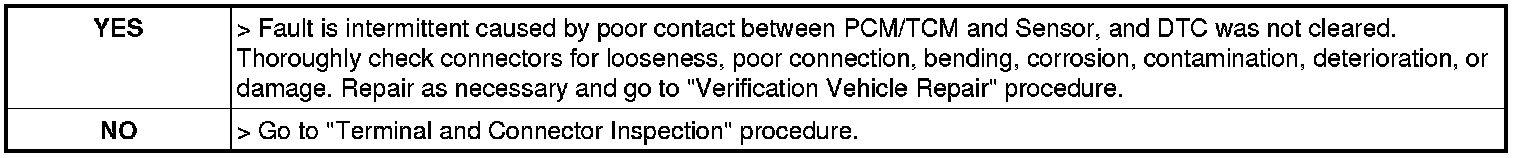

5. Is Shift Control Solenoid Valve(35/R-VFS) within specific?
