P0763 Shift Control Solenoid Valve \'C\' Electrical (35R/C) - General Information

Component Location





General Description

The PCM/TCM control 35R/C-VFS solenoid valve by changed current for reducing 35R clutch shock.

DTC Description

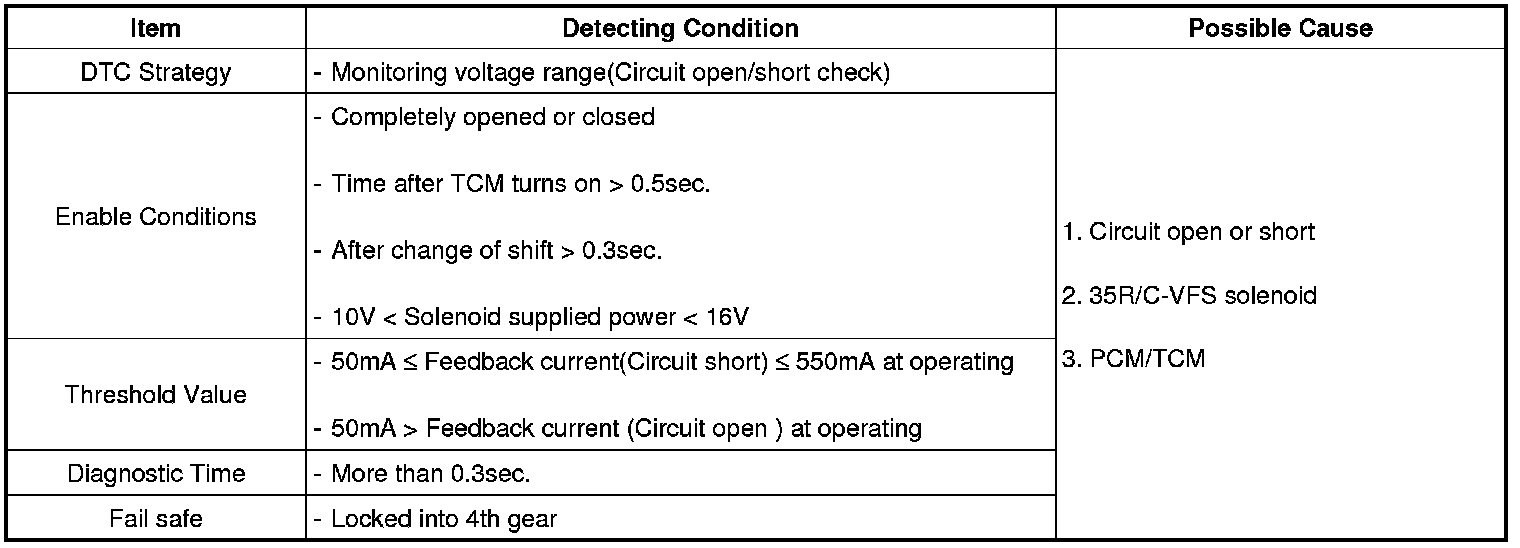

This DTC is set when PCM/TCM detects open or short circuit in valve harness.

DTC Detecting Condition





Specification

- Working temperature : -40°C~150°C(-6.2 - 302°F)
- Internal resistance : 5.1 ± 0.3 Ohms( 25°C(77°F) normal temperature )
Operating mode table at each step
SOLENOID VALVE





ELEMENT






Diagnostic Circuit Diagram










Signal Waveform & Data

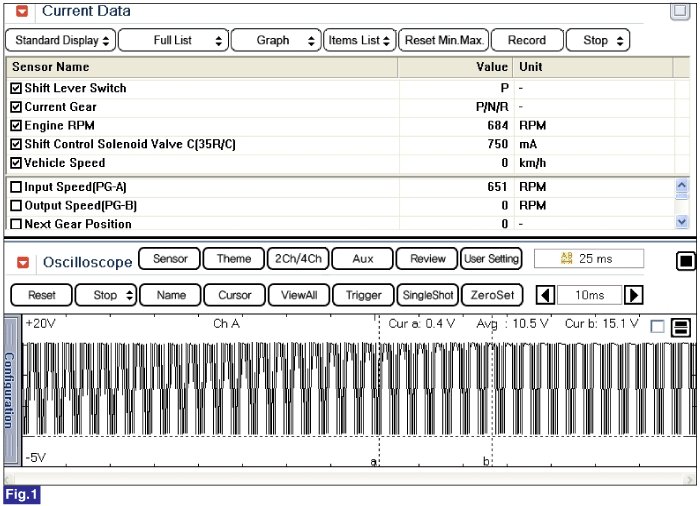

Fig 1) Wave form of OD/C-VFS
