Component Inspection

Automatic Transaxle
P0763 Shift Control Solenoid Valve \'C\' Electrical (35R/C) - Inspection/Repair:_:Component Inspection

Component Inspection

Shift control solenoid valve(35R/C-VFS) Inspection
1. Ignition "OFF".

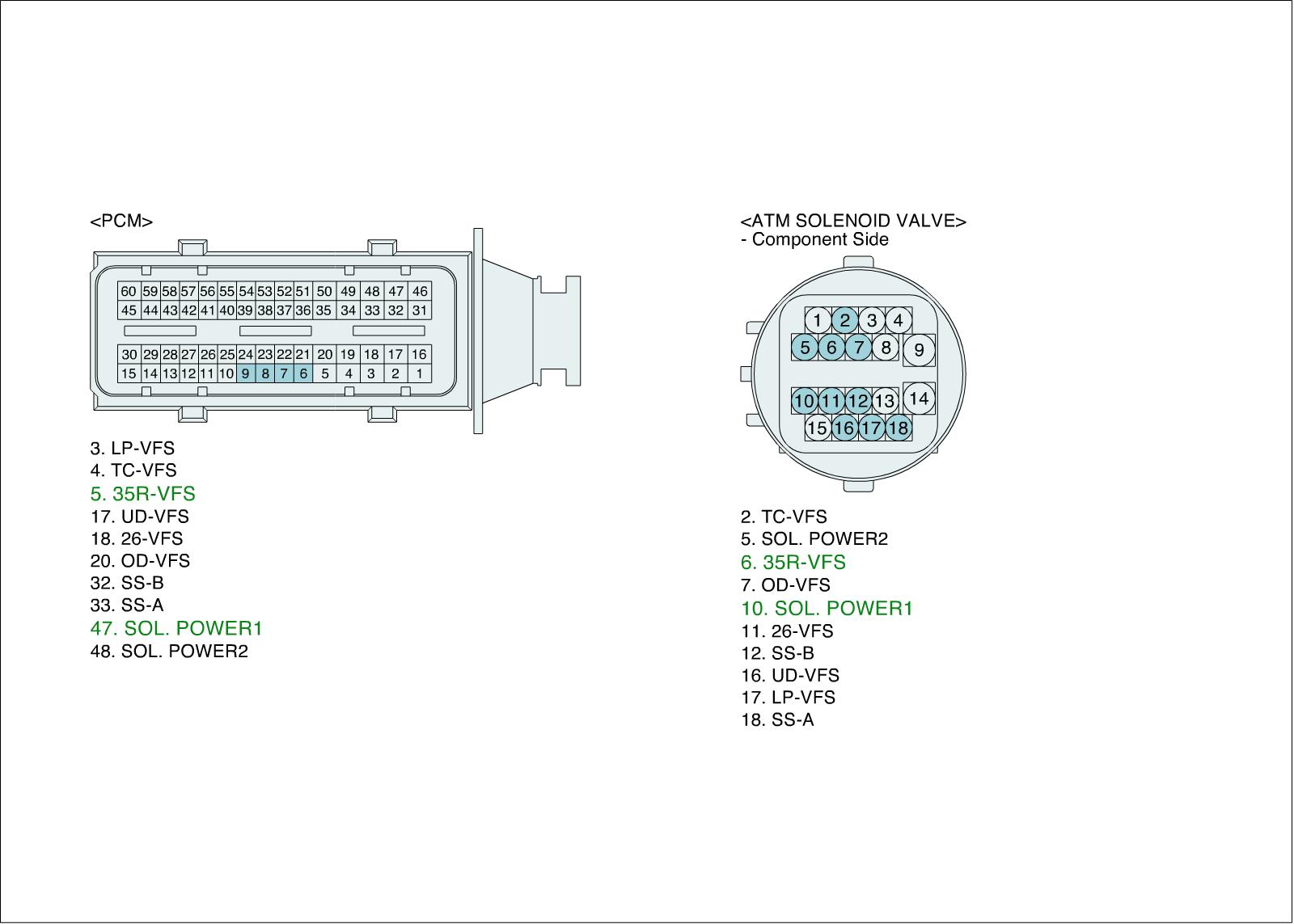

2. Disconnect "ATM solenoid valve connector.

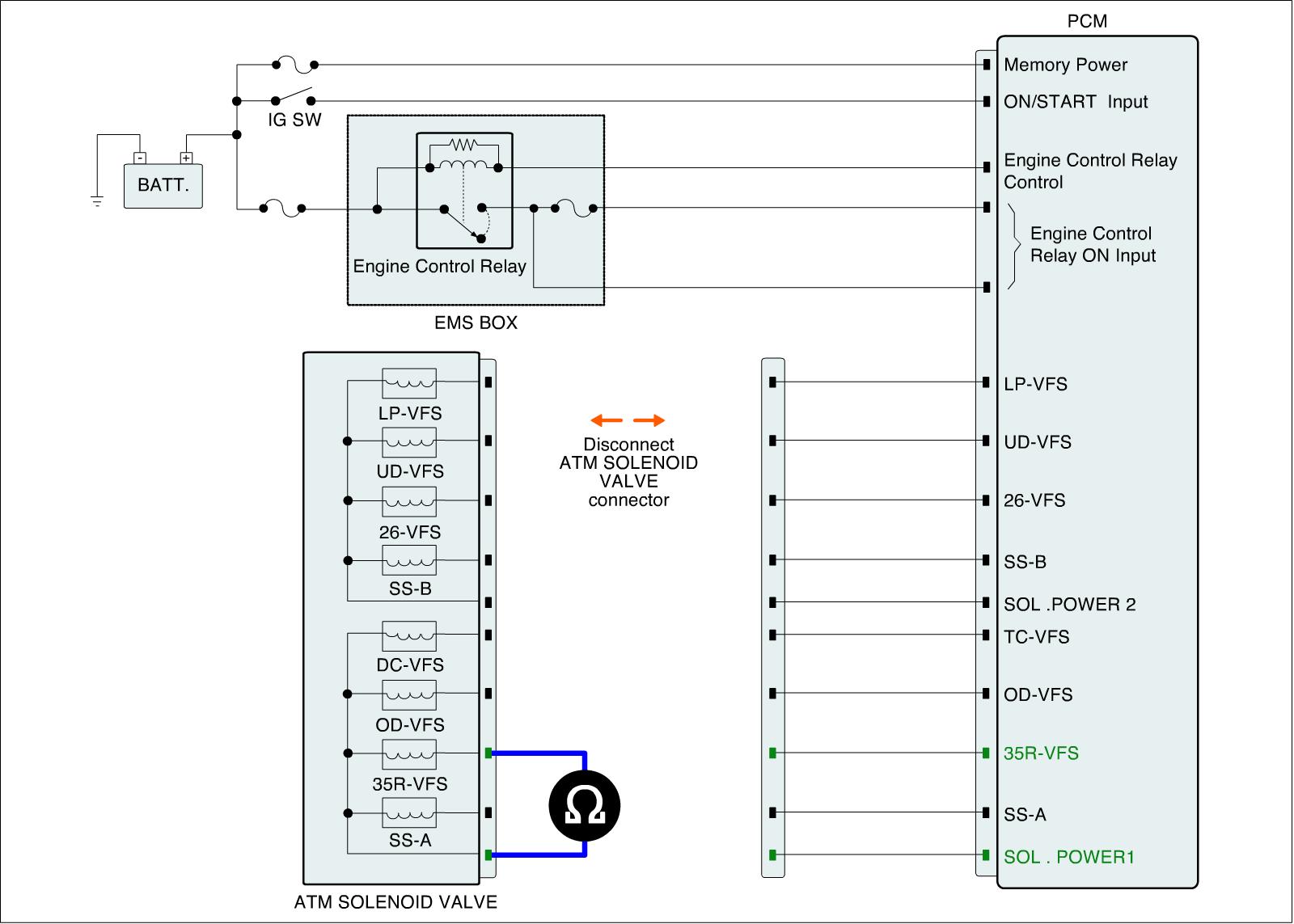

3. Measure a resistance between "Shift control solenoid valve(35R/C-VFS) " terminal and power at ATM solenoid valve connector.

Specification :5.1 ± 0.3 Ohms( 25°C)

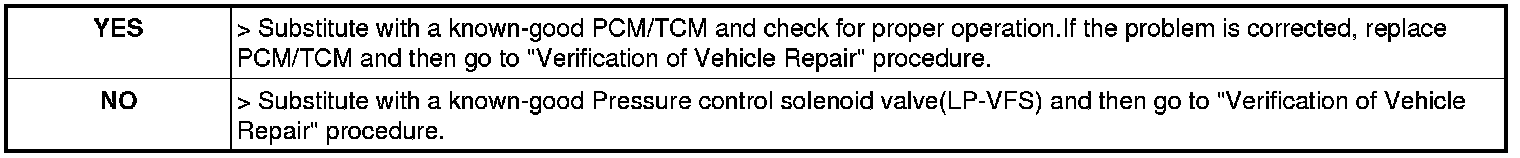

4. Is the measured resistance within specifications?
