P0753 Shift Control Solenoid Valve \'A\' Electical (UD/B) - General Information

Component Location





General Description

The PCM/TCM control UD-VFS(Shift Control Solenoid Valve) solenoid valve by changed current for reducing UD brake shock.

DTC Description

This DTC is set when PCM/TCM detects open or short circuit in valve harness.

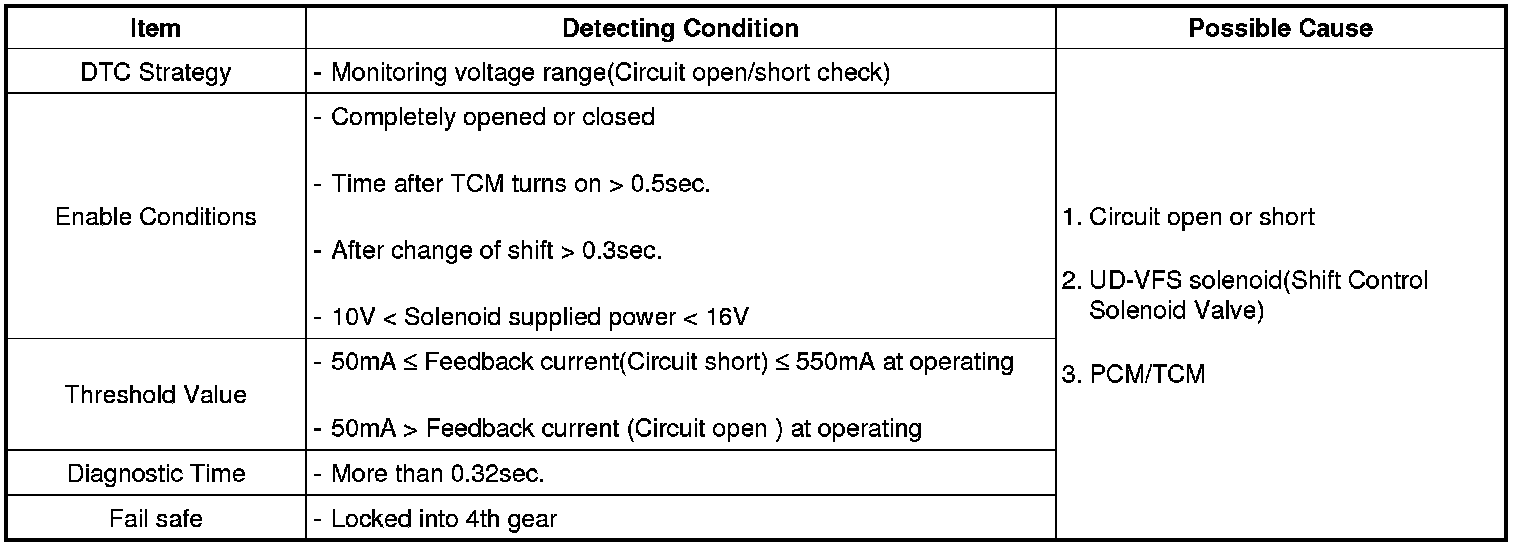

DTC Detecting Condition





Specification

- Working temperature : -40°C~150°C
- Internal resistance : 5.1 ± 0.3 Ohms( 25°C normal temperature )

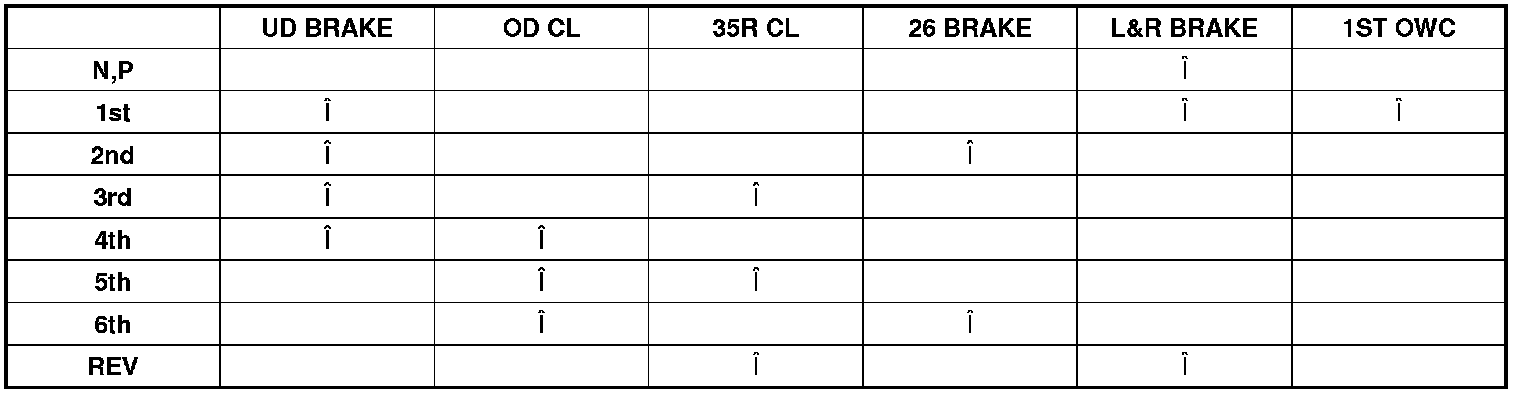

Operating mode table at each step

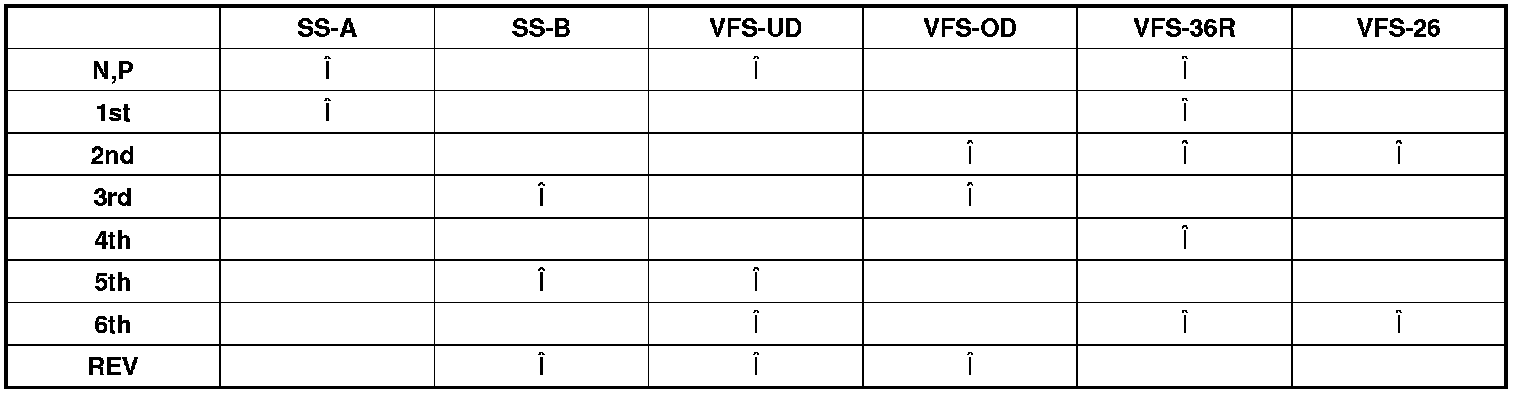

SOLENOID VALVE





ELEMENT






Diagnostic Circuit Diagram










Signal Waveform & Data

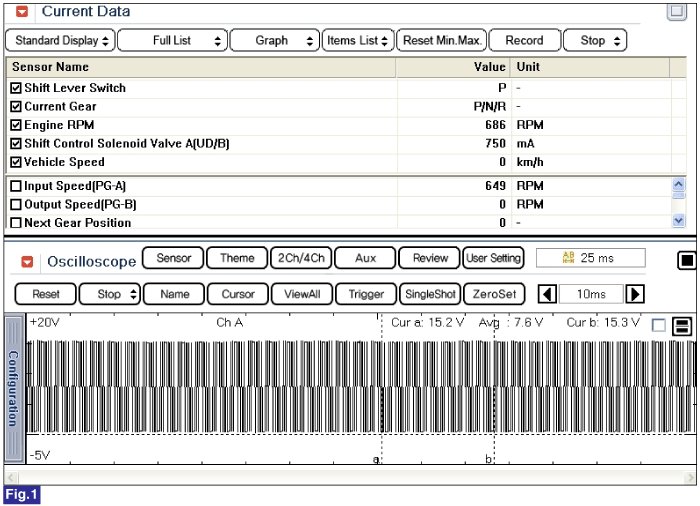

Fig 1) Wave form of UD-VFS
