Component Inspection

Automatic Transaxle
P0753 Shift Control Solenoid Valve \'A\' Electical (UD/B) - Inspection/Repair:_:Component Inspection

Component Inspection

Shift control solenoid valve(UD-VFS) Inspection
1. Ignition "OFF".

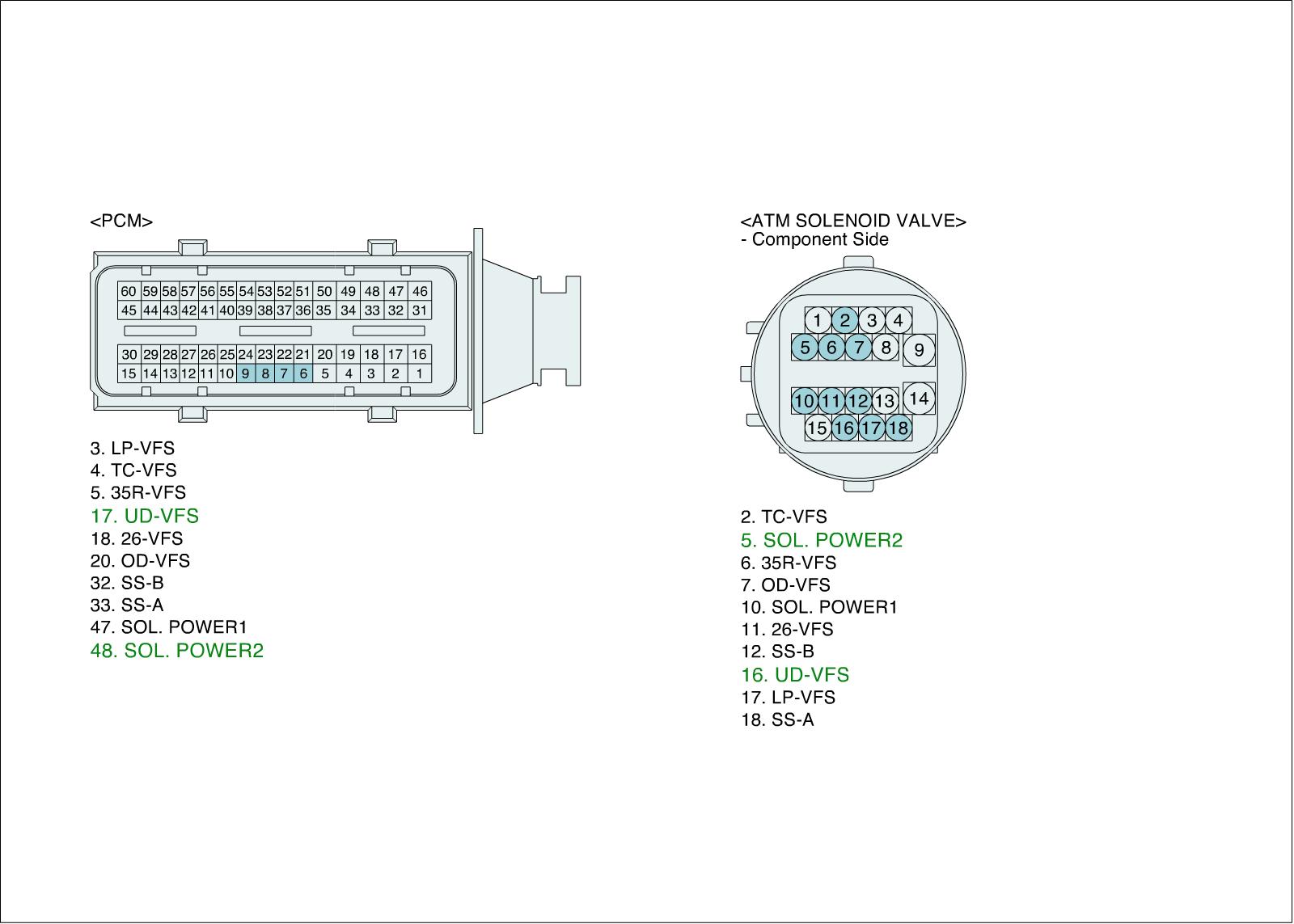

2. Disconnect "ATM solenoid valve connector.
3. Measure a resistance between "Shfit control solenoid valve(UD-VFS) " terminal and power at ATM solenoid valve connector.

Specification :5.1 ± 0.3 Ohms( 25°C)(77°F)

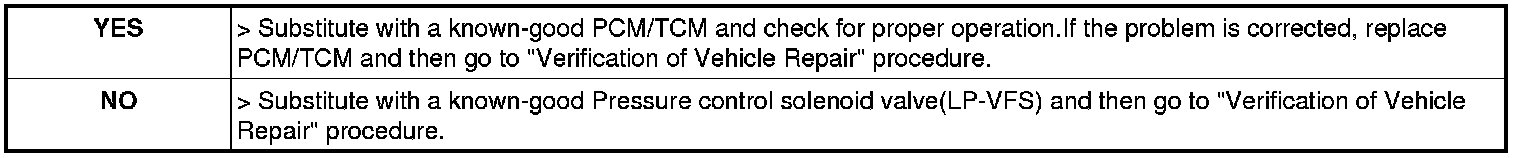

4. Is the measured resistance within specifications?
