Scantool Diagnostics

Automatic Transaxle
P0748 Pressure Control Solenoid Valve(VFS) \'A\' Electrical - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Engine "ON".
3. Driving 1st speed to 6th speed at D-range.
4. Select "Current Data" mode and monitor "Pressure Control Solenoid Valve" parameter current value.

Specification :See below data
































Fig 1) "P,N" range

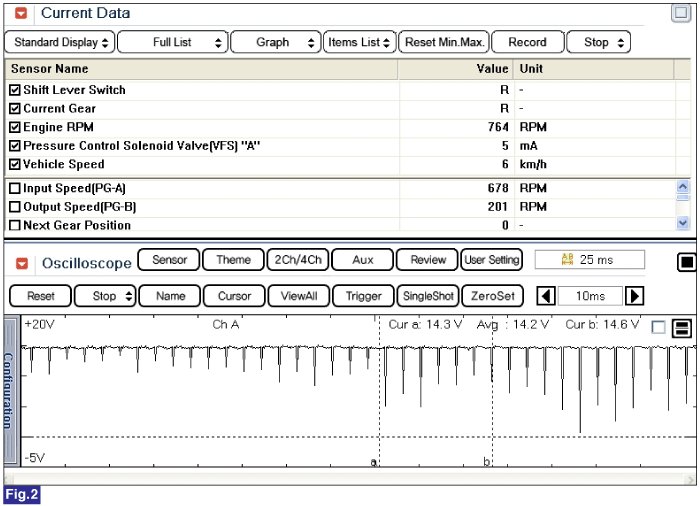

Fig 2) "R" range

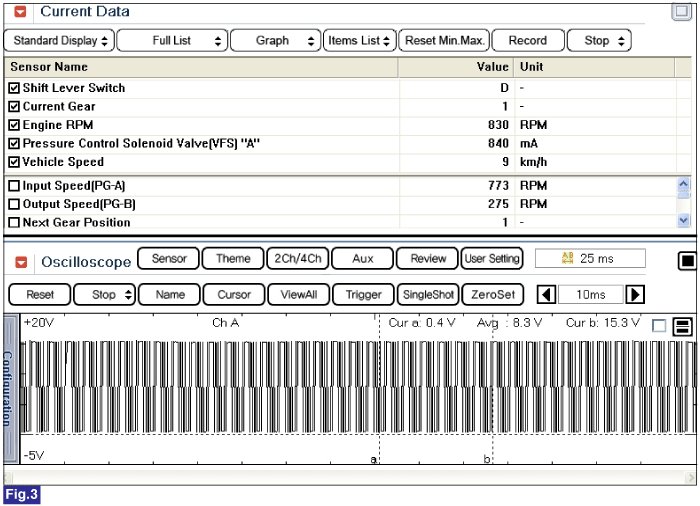

Fig 3) "D" range 1st gear
Fig 4) "D" range 2nd gear

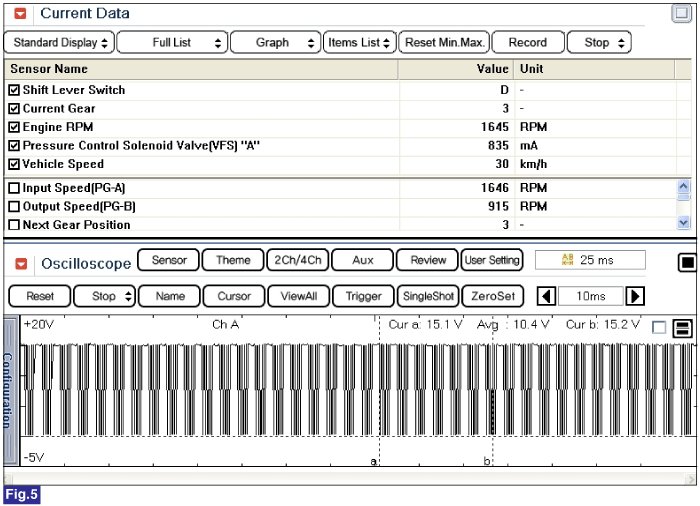

Fig 5) "D" range 3rd gear

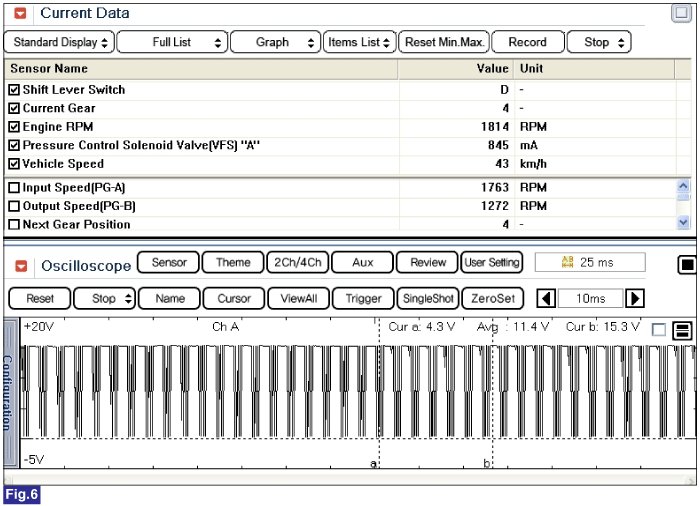

Fig 6) "D" range 4th gear

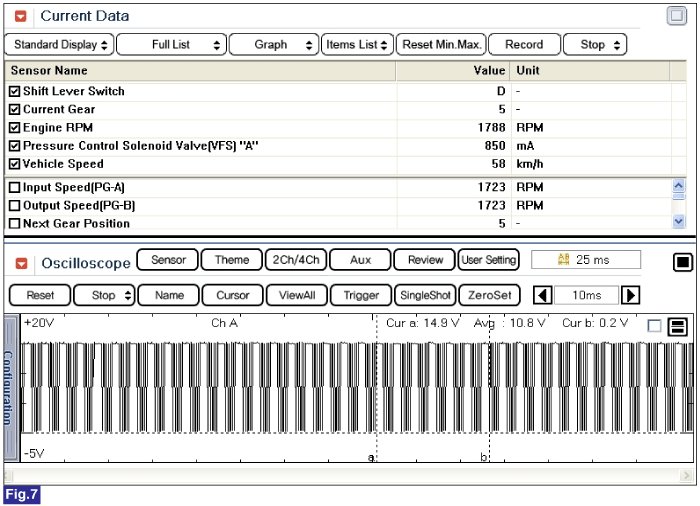

Fig 7) "D" range 5th gear

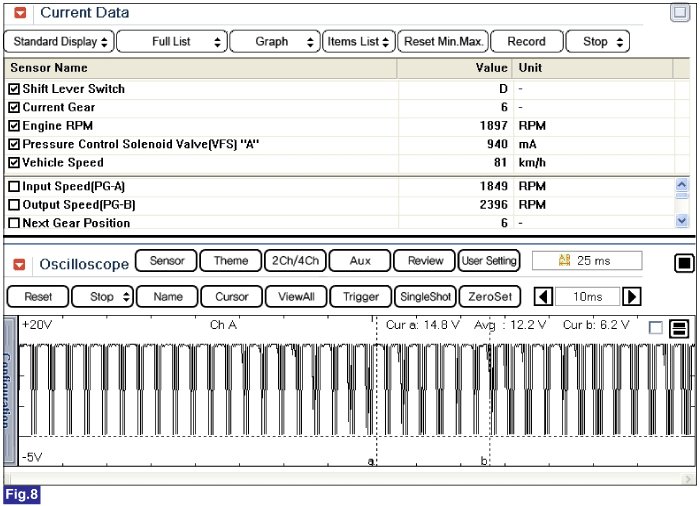

Fig 8) "D" range 6th gear

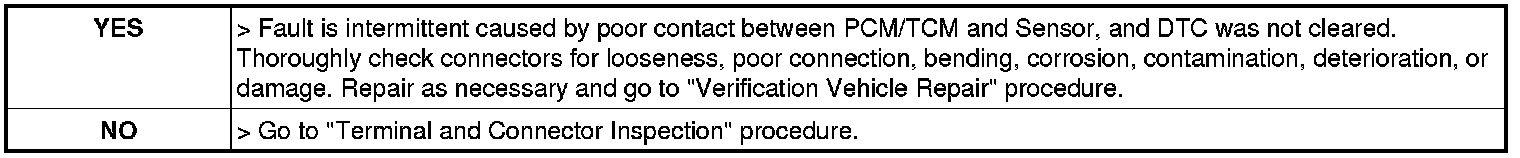

5. Is Pressure Control Solenoid Valve within specific?
