Component Inspection

Automatic Transaxle
P0734 Gear 4 Incorrect Ratio - Inspection/Repair:_:Component Inspection

Component Inspection

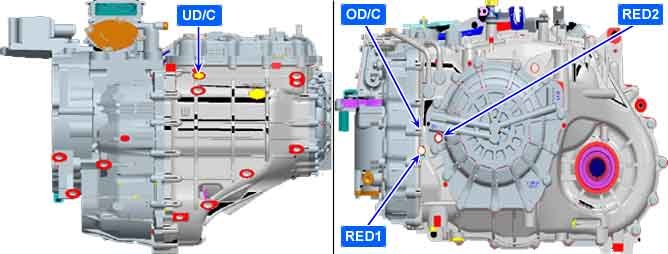

1. Connect oil pressure gage at "UD brake" port and "OD Clutch" por.
2. Engine ON.
3. Driving with 4th speed of gear at sports mode.
4. Check by below specific table.

Specification :See below specific table





5. Is measured oil pressure value within specific?
