Component Inspection

Automatic Transaxle
P0733 Gear 3 Incorrect Ratio - Inspection/Repair:_:Component Inspection

Component Inspection




1. Connect oil pressure gage at "UD brake" port and "3/5/R brake" port.
2. Engine ON.
3. Driving with 3rd speed of gear at sports mode.

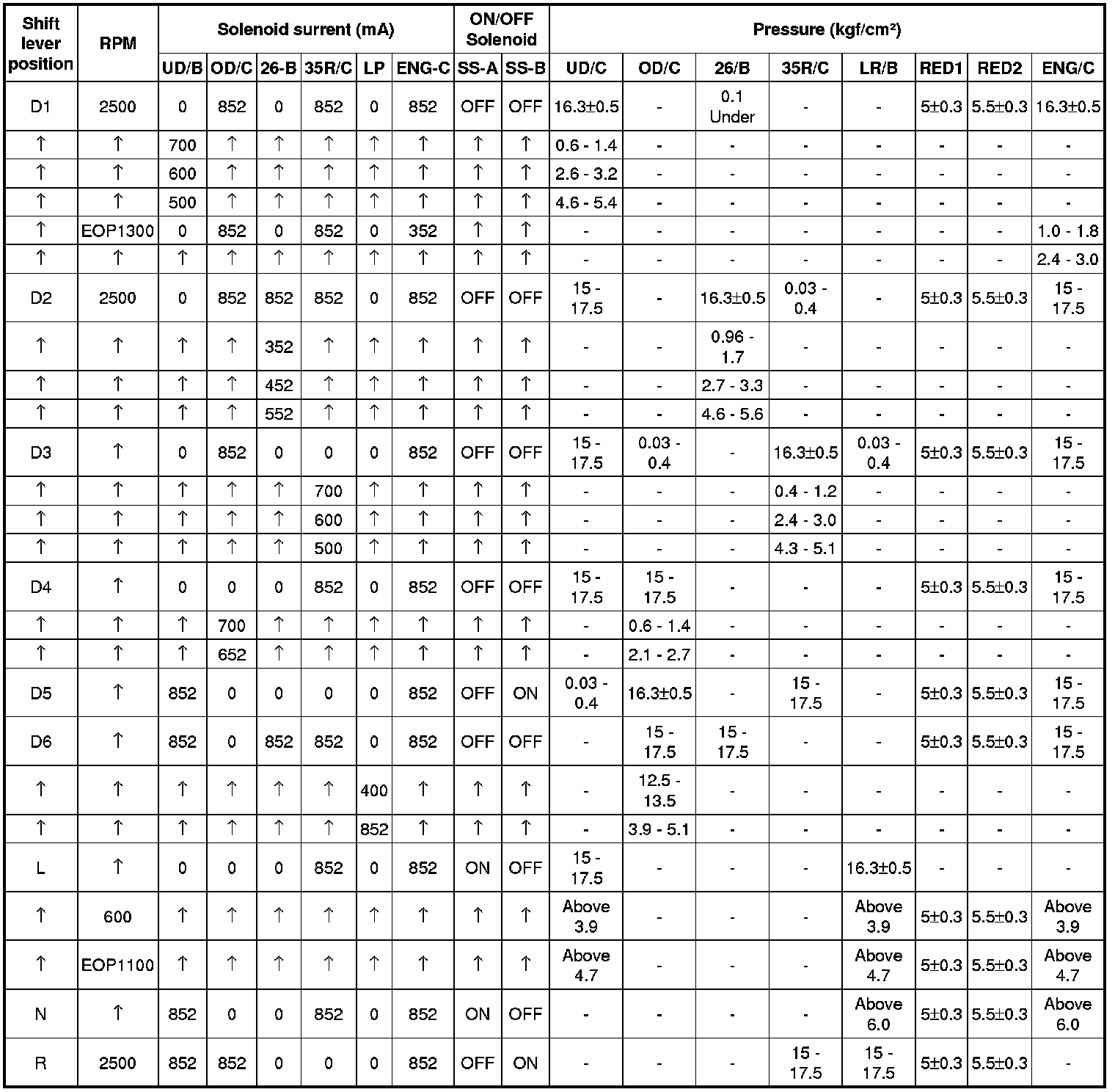

4. Check by below specific table.

Specification :See below specific table





5. Is measured oil pressure value within specific?
