Component Inspection

Automatic Transaxle
P0732 Gear 2 Incorrect Ratio - Inspection/Repair:_:Component Inspection

Component Inspection

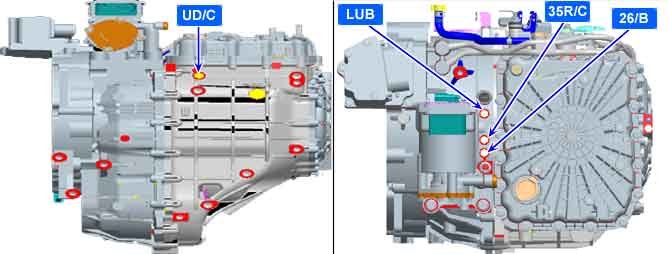

1. Connect oil pressure gage at "UD brake" port and "2/6 brake" port.
2. Engine ON.
3. Driving with 2nd speed of gear at sports mode.
4. Check by below specific table.

Specification :See below specific table





5. Is measured oil pressure value within specific?
