Component Inspection

Automatic Transaxle
P0731 Gear 1 Incorrect Ratio - Inspection/Repair:_:Component Inspection

Component Inspection

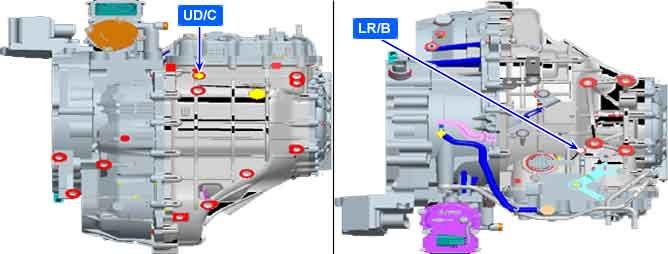

1. Connect oil pressure gage at "UD" port and "L/R" port.
2. Engine ON.
3. Driving with 1st speed of gear at sports mode.

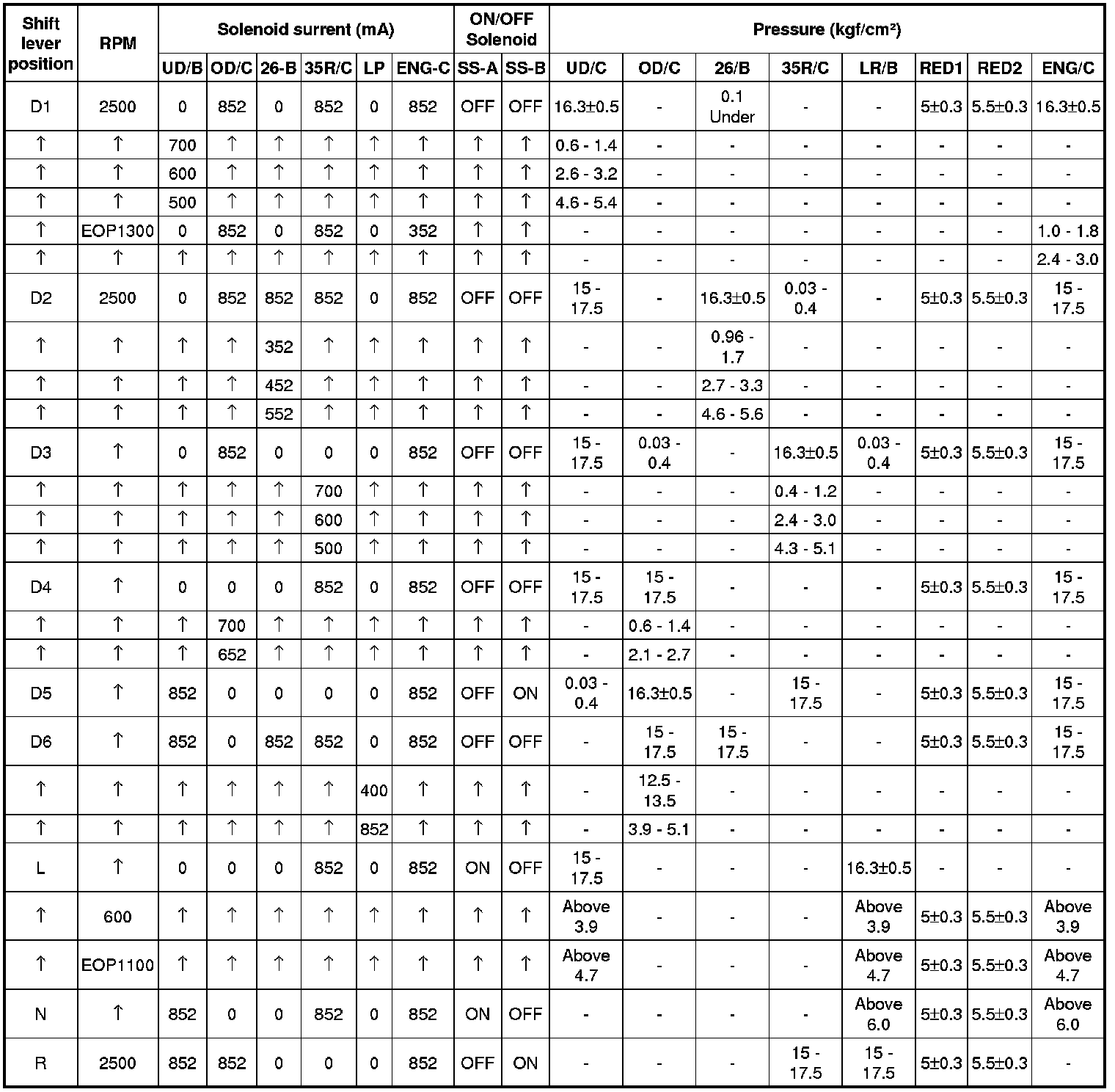

4. Check by below specific table.

Specification :See below specific table





5. Is measured oil pressure value within specific?
