W/Harness Inspection

Automatic Transaxle
P0729 Gear 6 Incorrect Ratio - Inspection/Repair:_:W/Harness Inspection

Signal Circuit Inspection

1. Connect scantool to Data Link Connector(DLC).
2. Engine "ON".

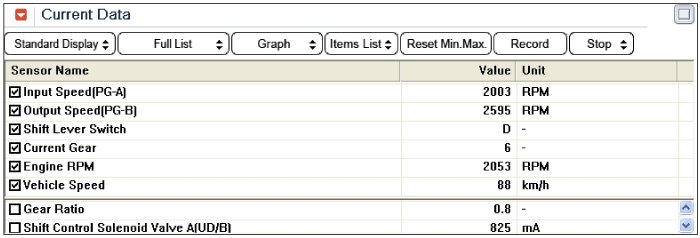

3. Select "Current Data" mode and monitor "Engine speed, Input speed sensor(PG-A), Output speed sensor(PG-B) and Gear position" parameter used select option.
4. Engine speed up to about 2000rpm and check Input speed(PG-A)&Output speed(PG-B) are within specific at 6th speed of gear.

Specification :
Output speed>(input speed+200rpm)/6th. gear ratio
Output speed<(input speed-200rpm)/6th. gear ratio

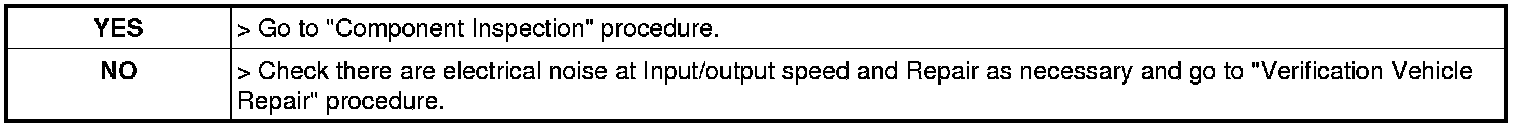

5. Are measured Input speed(PG-A)&Output speed(PG-B) within specific?
