Component Inspection

Automatic Transaxle
P0729 Gear 6 Incorrect Ratio - Inspection/Repair:_:Component Inspection

Component Inspection




1. Connect oil pressure gage at "2/6 Brake" port and "OD Clutch" port.
2. Engine ON.
3. Driving with 6th speed of gear at sports mode.

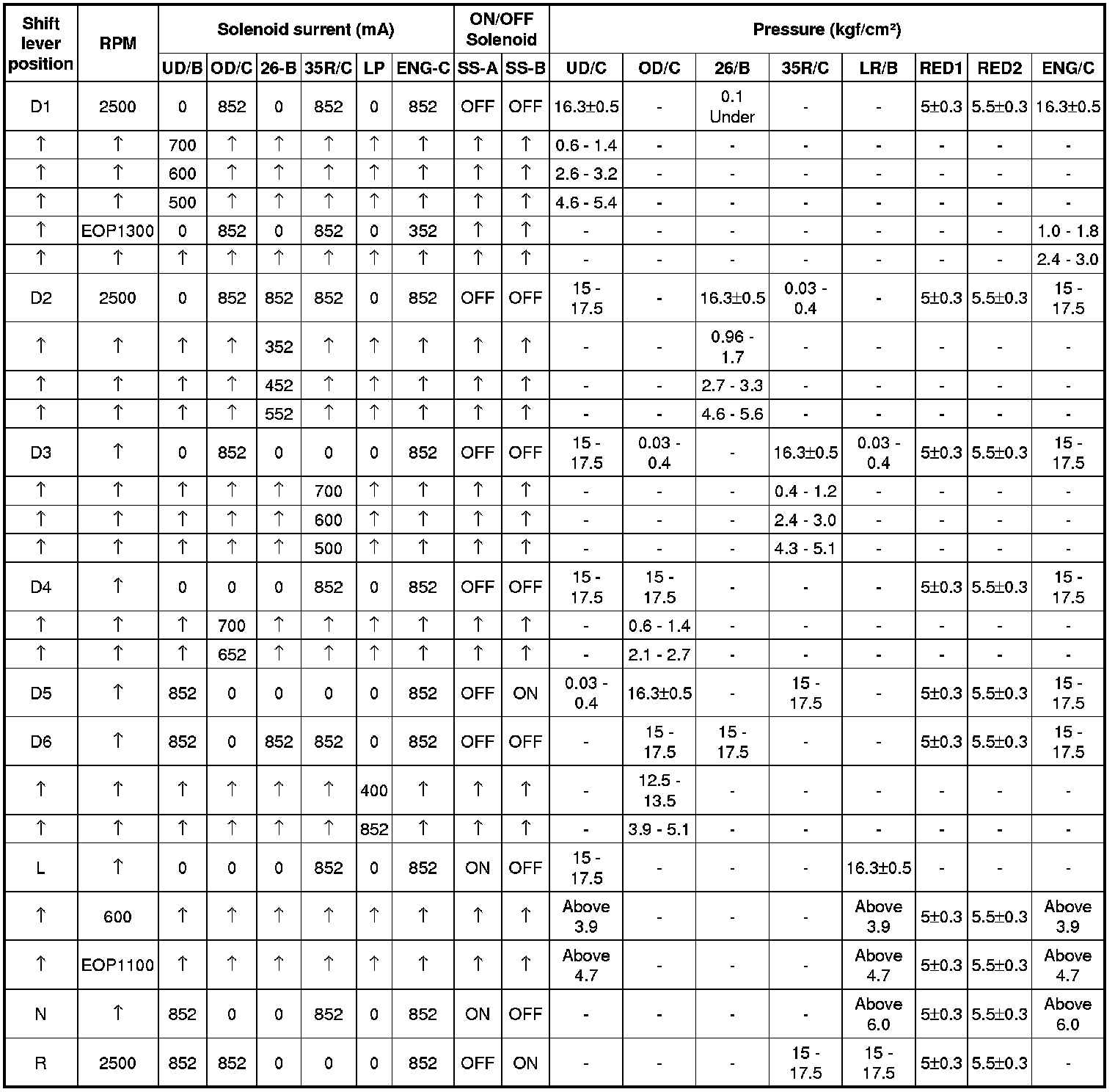

4. Check by below specific table.

Specification :See below specific table





5. Is measured oil pressure value within specific?
