Scantool Diagnostics

Automatic Transaxle
P0722 Output Speed Sensor Circuit No Signal - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Engine "ON".
3. Select "Current Data"mode and monitor "Output speed sensor(PG-B)"" parameter.
4. Drive above 20 Km/h(12.4MPH)

Specification :Increasing Gradually




































Fig 1) "P,N" range
Fig 2) "R" range
Fig 3) "D" range 1st gear
Fig 4) "D Range 1st" grar,VEHICLE SPEED=0
Fig 5) "D" range 2nd gear
Fig 6) "D" range 3rd gear
Fig 7) "D" range 4th gear
Fig 8) "D" range 5th gear
Fig 9) "D" range 6th gear

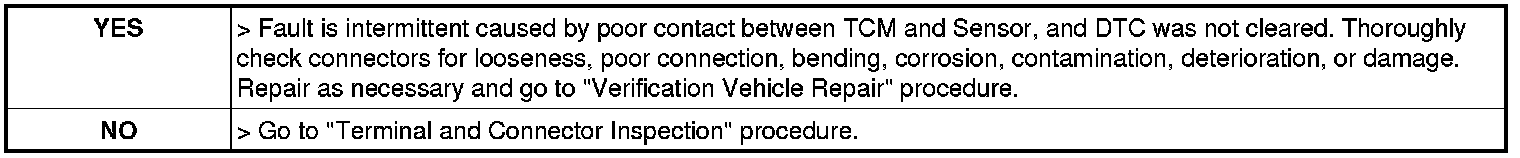

5. Is measured "Output speed sensor" value within specifications?
