General Information

Automatic Transaxle
P0721 Output Speed Sensor Circuit Range/Performance - General Information

Component Location





General Description

The Input/output speed sensor is one body and installed in transmission. It's used hall sensor of an electric current type, and current is changed by magnetic variation. Each sensors are composite 2 pins and PCM/TCM supplied power to sensor and controlled by PCM/TCM.

DTC Description

This DTC is set this code if vehicle speed is above 20km/h(12.4MPH) but input speed signal is not detected by PCM/TCM.

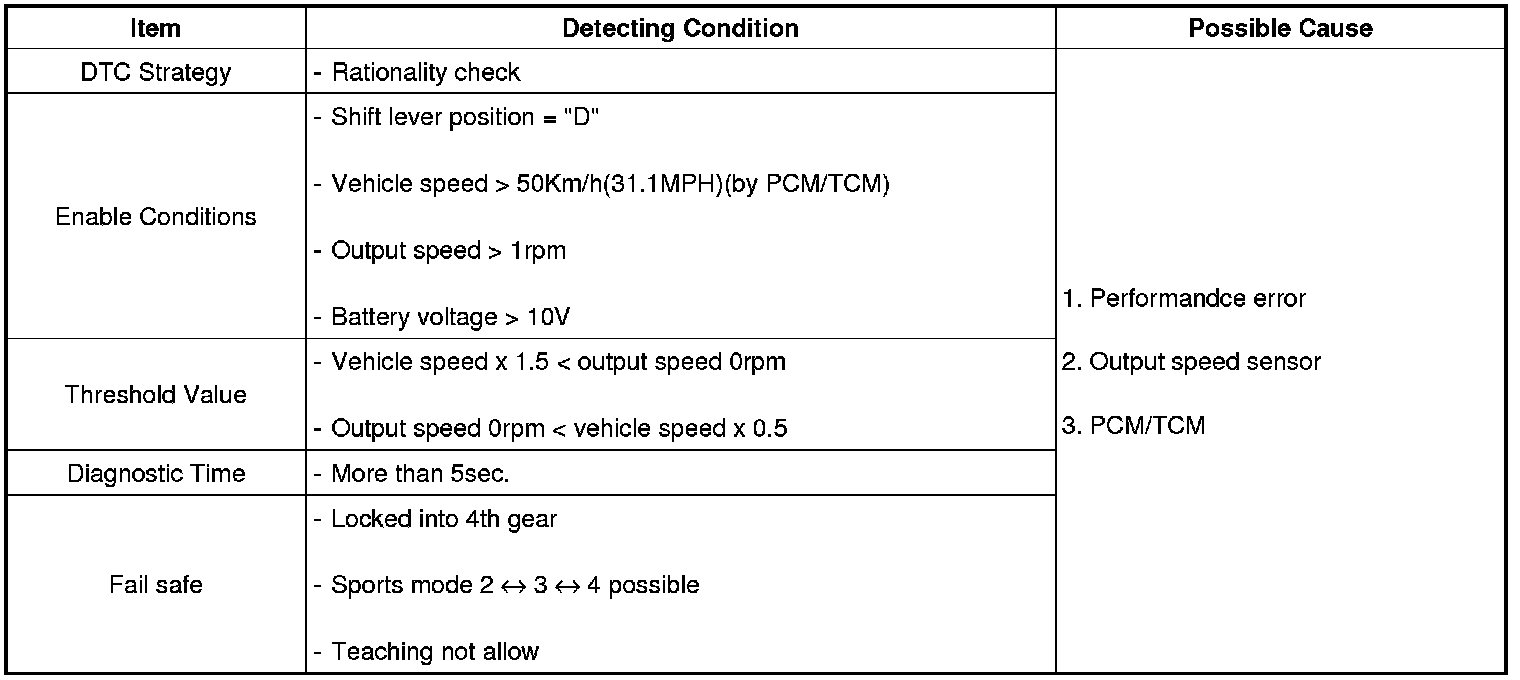

DTC Detecting Condition

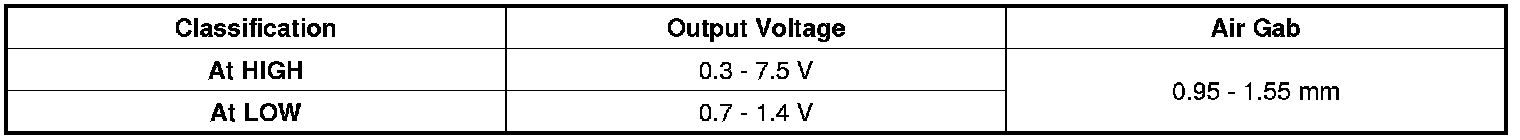

Specification





Diagnostic Circuit Diagram










Signal Waveform & Data








Fig 1) Input/Output speed sensor at low speed
Fig 2) Input/Output speed sensor at high speed
